Liberty Commercial Grade High Retention High Speed HDMI with Ethernet cable
E2-HDSEM-M
- Liberty E2 Series Commercial Grade HDMI cables
Features:
HDMI "A" male to "A" Male connectivity
High Retention feature on the Gold plated HDMI plugs
All lengths up to 20m feature 18G bandwidth
5 meters and longer are active and directional
4K60 4:4:4 Video, Audio Return, Ethernet, CEC
NEC CL2, CEC CMG FT4, RoHS/REACH Compliant
Applications:
Commercial and Residential HDMI connectivity
3D, 4K, Deep Color applications and installations
Audio/Visual equipment hookup and much more
Liberty Reduced Profile flexible HDMI Patching Cables with High Retention
M2-HDSEM-M
- Liberty's Ultimate HDMI Patching System Cables
Features:
HDMI "A" male to "A" Male connectivity
High Retention feature on the Gold plated HDMI plugs
Lengths up to 8 feet support 18G, up to 15 feet 10.2G
4K60 4:4:4 Video, Audio Return, Ethernet, CEC
TPE jacketing for high flexibility
AWM rated and RoHS/REACH Compliant
Lengths available: 1,2,3,4,5,6,8,10,12, and 15 feet
Applications:
HDMI patching, rack HDMI management and routing
Low profile required HDMI connectivity solutions
Audio/Visual equipment hookup and much more
RunAV Economy High Speed HDMI with Ethernet
RVHD
- RunAV Brand High Speed HDMI with Ethernet Cables
Features:
HDMI A Male to A Male Connectivity
Black molding and cable
28 AWG TMDS Pair Construction
Dual Layer Foil and High % Braid shielding
Flexible Polyvinyl Chloride Jacket
High Speed HDMI(R) with Ethernet rated
10.2 Gbps / 4K Video / 3D / CEC / ARC
NEC CL2, CEC CMG FT4, RoHS Compliant
Applications:
HDMI Digital Multimedia Device Interconnection
Rack patching HDMI equipment
Inter and Intra device Interconnection.
RunAV High Speed HDMI with Ethernet Right Angle Down Cable
RVHDRAD
- RunAV Brand HDMI High Speed Cables
Features:
HDMI A Male to 90 degree (DOWN) A Male Connectivity
Black molding and cable
28 AWG TMDS Pair Construction
Dual Layer Foil and High % Braid shielding
Flexible Polyvinyl Chloride Jacket
High Speed HDMI(R) with Ethernet rated
10.2 Gbps / 4K Video / 3D / CEC / ARC
NEC CL2, CEC CMG FT4, RoHS Compliant
Applications:
HDMI Digital Multimedia Device Interconnection
Low profile flat screen connection against a wall
HDMI port connection in low clearance areas
RunAV High Speed HDMI with Ethernet Right Angle Up Cable
RVHDRAU
- RunAV Brand HDMI High Speed Cables
Features:
HDMI A Male to 270 degree (UP) A Male Connectivity
Black molding and cable
28 AWG TMDS Pair Construction
Dual Layer Foil and High % Braid shielding
Flexible Polyvinyl Chloride Jacket
High Speed HDMI(R) with Ethernet rated
10.2 Gbps / 4K Video / 3D / CEC / ARC
NEC CL2, CEC CMG FT4, RoHS Compliant
Applications:
HDMI Digital Multimedia Device Interconnection
Low profile flat screen connection against a wall
HDMI port connection in low clearance areas
Tabletop HDMI, VGA and Audio hybrid cables
E-HDVAM-M
- Liberty Brand Tabletop HDMI hybrid cables
Features:
Digital HDMI and Analog VGA plus Audio in one cable
Siamese or SPT type cabling format
28 AWG HDMI for superior bandwidth and headroom
32 AWG coaxial VGA for WUXGA to 19 feet
UL and CSA listed product, AWM for non in-wall use
10.2 Gbps / 4Kx2K / 3D / Audio Return / CEC / Ethernet
Applications:
Tabletop or podium mobile device connection
Presentation systems and boardroom A/V connectivity
Inter and Intra device Interconnection.

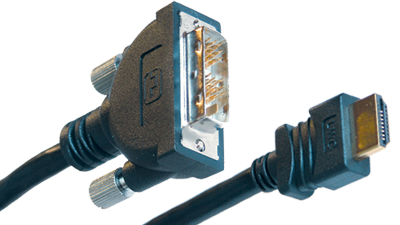

Liberty Premium Molded HDMI to DVI Digital cable
E-HD-DVI
- Liberty Brand Molded Digital Cable assemblies
Features:
HDMI "A" Male to DVI-D Male Single Link Connectivity
Gold Plated Contact Surfaces
28 AWG Tinned Annealed Copper Conductors
Skin Foam Polyethylene Dielectric Insulation
4 High Speed Twisted TMDS Pairs
100% Overall Foil shield / 85% Tinned Copper Braid Shield
Flame Rated PVC Outer Jacket
NEC CL2 / CEC CMG FT4, RoHS Compliant
DVI-D Single Link 4.95 Gbps/1920x1200/165MHz per TMDS
Lengths 1,2,3,4,5,6,8,and 10 meters are 28 AWG.
Applications:
Inteconnection of HDMI Video to DVI Sinks (Displays)
Interconnection of DVI Video to HDMI Sinks (Displays)
In-wall listed per UL444, UL13 and the NEC.
HDMI Cables | Plenum
Liberty HALO Plenum Series Active Optical High Speed HDMI™ Cables
18G HDMI 2.0 4K60 4:4:4 Plenum Rated Active Optical Cable w/ L-Grip and Orbit ID bands
HALO-HCP
- Liberty Halo Series Active Optical HDMI Cables
Features:
Active and Directional with no external power needed
Different color heads for TX and RX and a flag label
High Speed HDMI(TM) with Ethernet rated cables
18.0Gbps Bandwidth to support 4K60 4:4:4 to 30m
Supports ARC and all HDCP levels
Orbit ID Bands included in the package
Heads marked with Bandwidth and Length for ease of ID
Liberty L-Grip High Retention Connectors
Ultra-low capacitance DDC/EDID/I2C feature
NEC CMP, CEC CMP FT6, RoHS, REACH, and TAA Compliant
Re-sealable Retail marked Ziploc style package
Applications:
Commercial and Residential HDMI connectivity
3D, 4K, Deep Color applications and installations
Audio/Visual equipment hookup and much more
