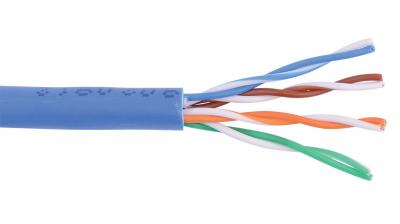

Category 5e U/UTP EN Series 24 AWG 4-Pair Unshielded Cable

24-4P-L5-EN

Pricing : Login for Your Price

Features and Benefits

Solid annealed bare copper conductors
High-density polyethylene insulation
4 pairs twisted in varying lays and cabled
Flame rated PVC jacket
TIA/EIA-568-C Category 5e and tested to 350 MHz
NEC CMR, CEC CMR FT4, RoHS compliant
1000 foot spools, Nested boxes, or Cool Spool Boxes

Applications

Horizontal LAN 10/100/1000BaseT Ethernet
Audio, video, infrared, IP control
Balun infrastructure, voice, voice over IP
PoE, HDBaseT, analog and digital media

Specifications

PDF Spec Sheet

Product Line:	24-4P-L5-EN
Description	4 pair 24 AWG solid, twisted, and unshielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 5e performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Conductor	24 AWG Solid annealed bare copper conductors Diameter: 0.0205" \| 0.51mm
Electrical	DC resistance: ≤ 28.6 Ω / 1000’ \| 93.81 Ω/KM DCR Unbalance: ≤ 5% Capacitance: 17.0 pF/FT \| 56.0 pF/M Impedance: 100 ± 15 Ω Propagation Delay (Skew): 45ns/100m MAX Velocity of Propagation: 68% Voltage rating: 300V Pair to ground capacitance Unbalance: ≤ 330 pF/100M Maximum current: 1.4A@25°C
Insulation	High density polyethylene Wall thickness: 0.0075" \| 0.19mm Diameter: 0.035" \| 0.89mm
Regulatory	ANSI/TIA-568-C Category 5e NEC: CMR 75°C CEC: CMR FT4 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Pair 1: Orange, White/orange stripe Pair 2: Blue, White/blue stripe Pair 3: Green, White/green stripe Pair 4: Brown, White/brown stripe
Packages	Reel: 1000’ \| 305M Nested Box: 1000’ \| 305M Weight: 26 Lbs/1000’ \| 39 Kg/KM

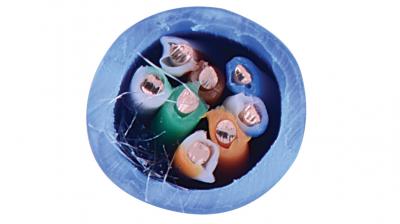

Assembly	Pairs twisted in varying lay lengths with co-extruded like striped conductor 4 twisted pairs cabled on a common axis
Installation	Pull Tension: 25 Lbs \| 111 N Bend radius: 2.19" \| 56mm unloaded Bend radius: 4.38 \| 112mm loaded
Construct	Ripcord under jacket
Applications	Riser LAN systems 10/100/1000BaseT Riser Phone, Voice, Video over IP and security video BALUN support and media infrastructure Infrared, audio
Shield	N/A
Performance	LAN: 300 feet Passive Baluns up to 2500 feet
Jacket	Flame rated polyvinyl chloride Colors: Blue, White, Yellow, Green, Gray, Orange, Pink, Red, Violet, Black Wall thickness: 0.025" \| 0.635mm Diameter: 0.219" \| 5.57mm
Final Outside Diameter (inches)	0.219
