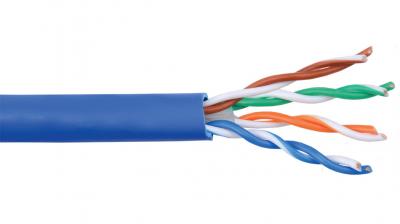

Category 6 U/UTP EN Series 23 AWG 4 Pair Unshielded Cable
24-4P-L6-EN
Pricing :
Login for Your Price
Or
- 23 AWG solid bare copper conductors
- HDPE, high-density polyethylene insulation
- Color striping on white conductors
- Varying lay twisted pairs cabled on a common axis
- Ripcord under the jacket
- FR-PVC, flame rated polyvinyl chloride jacket
- Tested to 550 MHz with a positive ACR spec to 550 MHz
- Third party (UL, ETL) certified to category 6 performance
- NEC rated CMR, CEC rated CMR, CMG FT4, RoHS compliant
- Non-plenum horizontal LAN 10/100/1000BaseT networking
- Balun infrastructure, voice, voice over IP cabling
- Video, audio, infraRed, IP control
- PoE, HDBaseT, analog and digital multimedia
Specifications
| Product Line: | 24-4P-L6 |
|---|---|
| Description | 4 pair 23 AWG solid, twisted, and unshielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 6 performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | 23 AWG Solid annealed bare copper conductors Diameter: 0.0226" | 0.574mm |
| Electrical | DC resistance: ≤ 20.3 Ω / 1000’ | 66.6 Ω/KM DCR Unbalance: ≤ 5% Capacitance: 14.0 pF/FT | 45.9 pF/M Impedance: 100 ± 15 Ω Propagation Delay (Skew): 45ns/100m MAX Velocity of Propagation: 68% Voltage rating: 300V Pair to ground capacitance Unbalance: ≤ 330 pF/100M Maximum current: 1.4A@25°C |
| Insulation | Polyethylene Wall thickness: 0.008" | 0.20mm Diameter: 0.0386" | 0.98mm |
| Regulatory | ANSI/TIA-568-C Category 6 NEC: CMR 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Pair 1: Orange, White/orange stripe Pair 2: Blue, White/blue stripe Pair 3: Green, White/green stripe Pair 4: Brown, White/brown stripe |
| Packages | Reel: 1000’ | 305M Weight: 26 Lbs/1000’ | 39 Kg/KM |

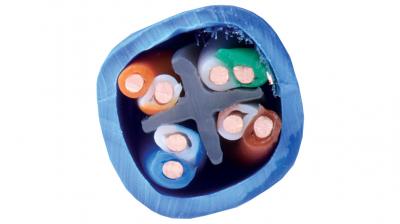

| Assembly | Pairs twisted in varying lay lengths Each pair in a polyethylene X separator interstice |
| Installation | Pull Tension: 25 Lbs | 111 N Bend radius: 2.40" | 61mm unloaded Bend radius: 4.80" | 122mm loaded |
| Construct | Ripcord under jacket |
| Applications | Riser LAN systems 10/100/1000BaseT Riser Phone, Voice, Video over IP and security video BALUN support and media infrastructure Infrared, audio |
| Shield | N/A |
| Performance | LAN: 300 feet Passive Baluns up to 2500 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Blue, Yellow, Gray, White Wall thickness: 0.024" | 0.610mm Diameter: 0.240" | 6.10mm |
| Final Outside Diameter (inches) | 0.24 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
