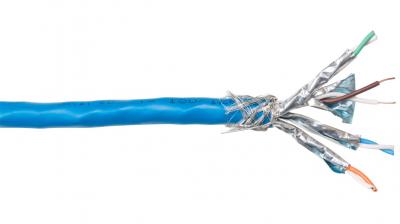

Category 7 S/FTP Series Heavy 23 AWG 4 Individually Shielded Pair Cable
24-4P-L7SH
Pricing :
Login for Your Price
Or
- 23 AWG solid bare copper conductors
- Foamed polyethylene Insulation
- Color striping on white conductors
- Individually shielded twisted pairs
- Overall 65% braid shield and drain wire
- Ripcord under the jacket
- Flame rated polyvinyl chloride jacket
- Third party verified to ISO 11801 class F (Cat 7)
- NEC CM, CEC CMG FT4, RoHS compliant
- Non-plenum horizontal LAN 10/100/1000/10GBaseT networking
- Balun infrastructure, voice, voice over IP cabling
- Video, audio, infraRed, IP control
- PoE, HDBaseT 4K 30/60Hz, analog and digital multimedia
Specifications
| Product Line: | 24-4P-L7SH |
|---|---|
| Description | 4 pair 23 AWG solid, twisted and individually shielded pair cable with an overall braided shield NEC type CM and CEC type CMG FT4. Third party verified to ISO 11801 Class F (Category 7) performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | 23 AWG Solid annealed bare copper conductors Diameter: 0.023" | 0.59mm |
| Electrical | DC resistance: ≤ 28.59 Ω / 1000’ | 93.8 Ω/KM DCR Unbalance: ≤ 2.0 % Capacitance: 17.0 pF/FT | 56.0 pF/M Impedance: 100 ± 15 Ω Propagation Delay (Skew): 25ns/100m MAX Velocity of Propagation: 74% Voltage rating: 300V Pair to ground capacitance Unbalance: ≤ 330 pF/100M Maximum current: 1.4A@25°C |
| Insulation | Foam polyethylene Wall thickness: 0.016" | 0.40mm Diameter: 0.055" | 1.40mm |
| Regulatory | ISO 11801 Class F (Category 7) NEC: CM 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Pair 1: Orange, White/orange stripe Pair 2: Blue, White/blue stripe Pair 3: Green, White/green stripe Pair 4: Brown, White/brown stripe |
| Packages | Reel: 1000’ | 305M Weight: 50 Lbs/1000’ | 75 Kg/KM |
| Assembly | Pairs twisted in varying lay lengths with co-extruded like striped conductor 4 twisted shielded pairs cabled on a common axis overall braided shield over construction |
| Installation | Pull Tension: 25 Lbs | 111 N Bend radius: 3.15" | 80mm unloaded Bend radius: 6.30" | 160mm loaded |
| Construct | Ripcord under jacket |
| Applications | LAN systems 10/100/1000/10G BaseT Phone, Voice, Video over IP and security video BALUN support and media infrastructure Infrared, audio HDBaseT 4K Video 30/60Hz |
| Shield | Each pair aluminum/polyester tape foil out 65% 16/8/38 AWG tinned copper braid overall shield 26 AWG solid tinned copper drain |
| Performance | LAN: 300 feet Passive Baluns up to 2500 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Blue Wall thickness: 0.023" | 0.59mm Diameter: 0.315" | 8.00mm |
| Final Outside Diameter (inches) | 0.315 |
