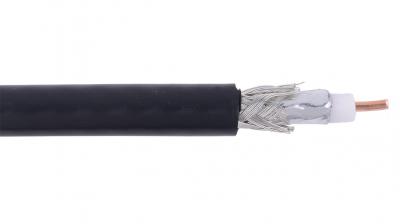

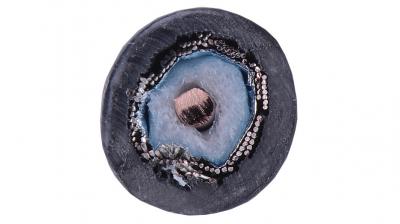

Microwave and Wireless RF195 RG58 Solid Dual Shield Cable
RG58-CMR
Pricing :
Login for Your Price
Or
- True RF-195 sized wireless broadcast cable
- 19 AWG solid annealed bare copper conductor
- Gas-injected cellular polyethylene dielectric
- Dual shield 100% foil and 95% tinned copper braid
- Flame rated PVC jacket
- 2.5 GHz sweep, very low loss, excellent VSWR
- NEC CMR, CEC CMR FT4, RoHS compliant
- 1000 foot spools
- Antenna pigtails, inventory control systems
- Satellite radio cabling, microwave signals
- Wireless communications, instrumentation
- Ham radio, CB radio, cellular nodes
Specifications
| Product Line: | RG58-CMR |
|---|---|
| Description | 19 AWG solid core bare copper dual shielded RG58 coaxial cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820. |
| Component 1: | 19 AWG Solid annealed bare copper conductors Diameter: 0.037" | 0.94mm |
| Electrical | DC resistance: 7.60 Ω / 1000’ | 24.93 Ω/KM Shield DCR: 4.90 Ω / 1000’ | 16.07 Ω/KM Mutual capacitance: 24.3 pF/FT | 79.7 pF/M Impedance: 50 ± 2 Ω Velocity of Propagation: 80% Voltage rating: 300V SRL 30-2500 MHz: -15dB |
| Component 2: | Foam polyethylene Wall thickness: 0.039" | 0.98mm Diameter: 0.110" | 2.79mm |
| Regulatory | NEC: CMR 75°C CEC: CMR FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Natural |
| Packages | Reel: 1000’ | 305M Weight: 28 Lbs/1000’ | 42 Kg/KM |
| Assembly | N/A |
| Installation | Pull Tension: 40 Lbs | 177 N Bend radius: 1.95" | 50mm unloaded Bend radius: 3.90" | 100mm loaded |
| Construct | N/A |
| Applications | Riser Wireless Broadcast systems for RF195 sized cables Riser Antenna pigtails, Inventory control systems Riser Microwave, wireless microphones |
| Shield | 100% aluminum/poly 90% 16x6/36 AWG tinned copper braid shield |
| Performance | N/A |
| Jacket | Flame rated polyvinyl chloride Colors: Black Wall thickness: 0.028" | 0.71mm Diameter: 0.195" | 4.95mm |
| Final Outside Diameter (inches) | 0.195 |
