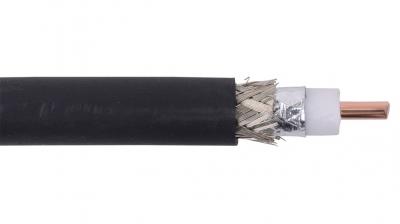

Microwave and Wireless RF400 RG8 Solid Dual Shield Cable
RG8-CMR-BLK
Pricing :
Login for Your Price
- True RF-400 sized wireless broadcast cable
- 10 AWG solid copper clad aluminum conductor
- Gas-injected cellular polyethylene dielectric
- Dual shield 100% foil and 95% tinned copper braid
- Flame rated PVC jacket
- 6.0 GHz sweep, very low loss, excellent VSWR
- NEC CMR, CEC CMR FT4, sunlight resistant, RoHS compliant
- 1000 foot spools
- Antenna pigtails, inventory control systems
- Satellite radio cabling, microwave signals
- Wireless communications, instrumentation
- Ham radio, CB radio, cellular nodes
Specifications
| Product Line: | RG8-CMR |
|---|---|

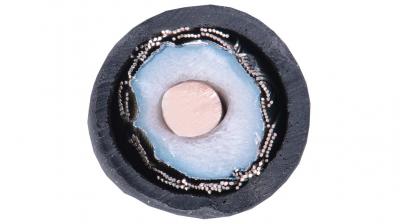

| Description | 10 AWG solid core bare copper dual shielded RG8 coaxial cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820. |
| Conductor | 10 AWG Solid copper clad aluminum conductors Diameter: 0.108" | 2.74mm |
| Electrical | DC resistance: 1.39 Ω / 1000’ | 4.56 Ω/KM Shield DCR: 1.65 Ω / 1000’ | 5.41 Ω/KM Mutual capacitance: 23.5 pF/FT | 77.1 pF/M Impedance: 50 ± 3 Ω Velocity of Propagation: 85% Voltage rating: 300V Cutoff frequency: 16.2 GHz |
| Insulation | Foam polyethylene Wall thickness: 0.088" | 2.25mm Diameter: 0.285" | 7.24mm |
| Regulatory | NEC: CMR 75°C CEC: CMG FT4 60°C Sunlight resistant EU RoHS-2 2011/65/EU Compliant |
| Color Code | Natural |
| Packages | Reel: 1000’ | 305M Weight: 83 Lbs/1000’ | 124 Kg/KM |
| Assembly | N/A |
| Installation | Pull Tension: 160 Lbs | 712 N Bend radius: 4.05" | 103mm unloaded Bend radius: 8.10" | 206mm loaded |
| Construct | N/A |
| Applications | Riser Wireless Broadcast systems for RF400 sized cables Riser Antenna pigtails, Inventory control systems Riser Microwave, wireless microphones |
| Shield | 100% bonded aluminum/poly/aluminum 90% 24x9/34 AWG tinned copper braid shield |
| Performance | 16KW maximum power |
| Jacket | UV stabilized Flame rated polyvinyl chloride Colors: Black Wall thickness: 0.045" | 1.14mm Diameter: 0.405" | 10.29mm |
| Final Outside Diameter (inches) | 0.405 |
