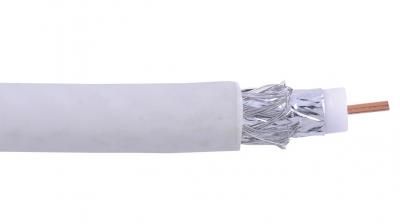

RG6 CCS Dual Shielded Coaxial Cable Swept to 3.0 GHz
RG6-CM
Pricing :
Login for Your Price
Or
- 18 AWG solid copper clad steel center conductor
- Gas-injected cellular polyethylene dielectric
- Dual shield: Foil+60% aluminum foil and braid
- Flame rated polyvinyl chloride (FR-PVC) jacket
- NEC CM, CEC CMG FT4, RoHS compliant
- 3.0 GHz sweep test encompasses all CATV/DBS needs
- CATV / MATV / cable modem
- Direct broadcast satellite (DBS) without DC requirements
- RF modulated video distribution
Specifications
| Product Line: | RG6-CM |
|---|---|
| Description | 18 AWG solid core CCS dual shielded RG6 CATV/DBS coaxial cable NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820. |
| Conductor | 18 AWG Solid copper clad steel conductors Diameter: 0.040" | 1.02mm |
| Electrical | DC resistance: 36.28 Ω / 1000’ | 119 Ω/KM Shield DCR: 9.70 Ω / 1000’ | 31.80 Ω/KM Mutual capacitance: 16.2 pF/FT | 53.1 pF/M Impedance: 75 ± 3 Ω Velocity of Propagation: 80% Voltage rating: 300V SRL 5-2200 MHz: -20dB SRL 2.2-3 GHz: -17dB |
| Insulation | Foam polyethylene Wall thickness: 0.070" | 1.78mm Diameter: 0.180" | 4.57mm |
| Regulatory | NEC: CM 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Natural |
| Packages | Reel: 1000’ | 305M Weight: 29 Lbs/1000’ | 44 Kg/KM |
| Assembly | N/A |
| Installation | Pull Tension: 126 Lbs | 560 N Bend radius: 2.68" | 68mm unloaded Bend radius: 5.36" | 136mm loaded |
| Construct | N/A |
| Applications | General purpose CATV and DBS modulated video CATV and DBS where DC is not required Broadband video and cable modem |
| Shield | 100% bonded aluminum/mylar 60% 16x4/34 AWG aluminum braid shield |
| Performance | CATV to 237 feet DBS to 158 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Black, White Wall thickness: 0.028" | 0.70mm Diameter:0.268" | 6.80mm |
| Final Outside Diameter (inches) | 0.268 |
