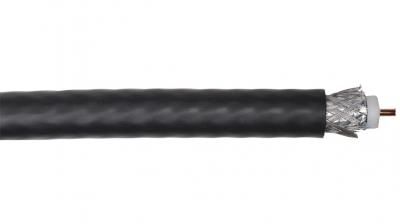

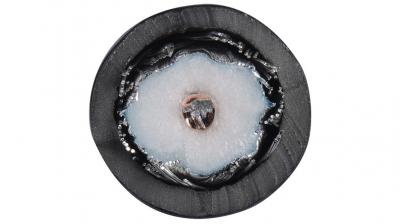

RG11 CCS Dual Shielded Coaxial Cable Swept to 3.0 GHz
RG11-CATV-BLK
Pricing :
Login for Your Price
- 14 AWG solid copper clad steel conductor
- Gas-injected cellular polyethylene dielectric
- Dual shield foil + 60% aluminum
- Flame rated PVC jacket
- 3.0 GHz sweep for all CATV through DBS needs
- NEC CM, CEC CM FT4, RoHS compliant
- 1000 foot spools
- CATV/MATV and direct broadcast satellite (DBS)
- Cable modem, non-DC pass circuits
- High frequency RF modulated signals
Specifications
| Product Line: | RG11-CATV |
|---|---|
| Description | 14 AWG solid core CCS dual shielded RG11 CATV/DBS coaxial cable NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820. |
| Conductor | 14 AWG Solid copper clad steel conductor Diameter: 0.0641" | 1.63mm |
| Electrical | DC resistance: < 11.0 Ω / 1000’ | 36.08 Ω/KM Shield DCR: 6.9 Ω / 1000’ | 22.63 Ω/KM Mutual capacitance: 16.2 pF/FT | 53.1 pF/M Impedance: 75 ± 3 Ω Velocity of Propagation: 82% Voltage rating: 300V SRL 5-2200 MHz: -20dB SRL 2.2-3 GHz: -17dB |
| Insulation | Foam polyethylene Wall thickness: 0.108" | 2.74mm Diameter: 0.280" | 7.11mm |
| Regulatory | NEC: CM 75°C CEC: CM 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Natural |
| Packages | Reel: 1000’ | 305M Weight: 71 Lbs/1000’ | 106 Kg/KM |
| Assembly | N/A |
| Installation | Pull Tension: 260 Lbs | 1156 N Bend radius: 4.05" | 103mm unloaded Bend radius: 8.10" | 206mm loaded |
| Construct | N/A |
| Applications | General purpose CATV and DBS modulated video General purpose CATV and DBS where DC is not required Broadband video and cable modem |
| Shield | 100% bonded aluminum/poly/aluminum foil 60% 16x6/34 AWG aluminum braid shield |
| Performance | CATV to 379 feet CCTV to 253 feet |
| Jacket | Flame rated polyvinyl chloride Colors: White, Black Wall thickness: 0.045" | 1.14mm Diameter: 0.405" | 10.29mm |
| Final Outside Diameter (inches) | 0.405 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
