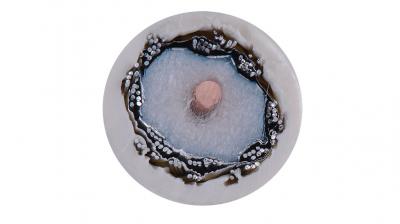

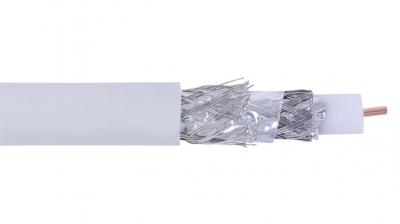

RG6 CCS Quad Shielded RF Video 3.0 GHz Cable

QUADFLEX

Sold Out!

Features and Benefits

18 AWG solid copper clad steel center conductor
Gas-injected cellular polyethylene dielectric
Quad shield: Foil+60%+Foil+40% aluminum foil and braid
Flame rated polyvinyl chloride (FR-PVC) jacket
NEC CM, CEC CMG FT4, RoHS compliant
3.0 GHz sweep test encompasses all CATV/DBS needs

Applications

CATV / MATV / cable modem
Direct broadcast satellite (DBS) without DC requirements
RF modulated video distribution

Specifications

PDF Spec Sheet

Product Line:	QUADFLEX
Description	18 AWG solid core CCS quad shielded RG6 CATV/DBS coaxial cable NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820.
Conductor	18 AWG Solid copper clad steel conductor Diameter: 0.0403" \| 1.02mm
Electrical	DC resistance: 36.28 Ω / 1000’ \| 119 Ω/KM Mutual capacitance: 16.2 pF/FT \| 53.14 pF/M Impedance: 75 ± 3 Ω Velocity of Propagation: 82% Voltage rating: 300V SRL 5-2200 MHz: -20dB SRL 2.2-3 GHz: -17dB
Insulation	Foam polyethylene Wall thickness: 0.070" \| 1.78mm Diameter: 0.180" \| 4.57mm
Regulatory	NEC: CM 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Natural
Packages	Reel: 1000’ \| 305M Weight: 29 Lbs/1000’ \| 44 Kg/KM
Assembly	N/A
Installation	Pull Tension: 162 Lbs \| 720 N Bend radius: 2.87" \| 73mm unloaded Bend radius: 5.74" \| 146mm loaded
Construct	N/A
Applications	General purpose CATV and DBS modulated video CATV and DBS where DC is not required Broadband video and cable modem
Shield	100% bonded aluminum/poly foil 60% 16x4/34 AWG aluminum braid shield 100% aluminum/poly/aluminum foil 40% 16x3/34 AWG aluminum braid shield
Performance	CATV to 237 feet DBS to 158 feet
Jacket	Flame rated polyvinyl chloride Colors: White, Black, Yellow, Blue, Red Wall thickness: 0.025" \| 0.65mm Diameter: 0.287" \| 7.3mm
Final Outside Diameter (inches)	0.287

Alternative Products

Part Number	Description
QUADFLEX-US-BLK	Made in USA RG6 CCS Quad Shielded RF Video 3.0 GHz CMR Rated Cable
18-CMR-SD
