OEM Systems Lighting Control for Lutron EcoSystems Bus Cable
LUTRON-EBC
Pricing :
Login for Your Price
Or

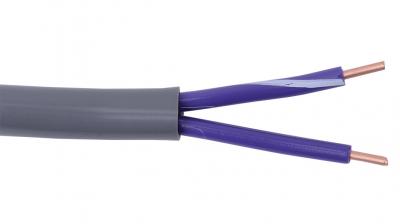

- Lutron EcoSystems bus cable
- Equivalent to C-CBL-216-GR-1
- 16 AWG solid annealed bare copper
- PVC insulation with special color code
- Twisted, unshielded
- Flame rated PVC jacket
- NEC CM, CEC CM FT1, RoHS compliant
- AWM 20811 600V 105˚C for lighting pendant use
- 1000 foot spools
- OEM ballast system bus cable
- AWM rating cannot be used with CM rating
- Class 2 and class 3 low voltage power
- Systems instrumentation and control
Specifications
| Product Line: | LUTRON-EBC |
|---|---|

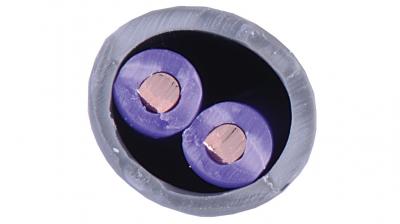

| Description | 2 conductor 16 AWG solid, twisted, and unshielded cable NEC type CM and CEC type CMR FT4, 600V AWM style 20811 for pendant lighting. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Component 1: | 16 AWG Solid annealed bare copper conductors Diameter: 0.0508" | 1.29mm |
| Electrical | DC resistance: 4.26 Ω / 1000’ | 13.97 Ω/KM Mutual capacitance: 20.5 pF/FT | 67.2 pF/M Impedance: 94 Ω Velocity of Propagation: 55% Voltage rating for CM: 300V Voltage rating for AWM: 600V Maximum current: 6.25A@25°C |
| Component 2: | Polyvinyl chloride Wall thickness: 0.030" | 0.76mm Diameter: 0.110" | 2.81mm |
| Regulatory | NEC: CM 75°C CEC: CM 75°C AWM 20811 600V 105C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Violet, Violet/white stripe |
| Packages | Reel: 1000’ | 305M Weight: 41 Lbs/1000’ | 62 Kg/KM |
| Assembly | 2 conductors cabled on a common axis |
| Installation | Pull Tension: 42 Lbs | 187 N Bend radius: 2.83" | 72mm unloaded Bend radius: 5.66" | 144mm loaded |
| Construct | Ripcord under jacket |
| Applications | Lutron® EcoSystems® bus cable General purpose ballast support cable for Lutron® systems Dual rated for Lighting Pendant wiring applications (600V) |
| Shield | N/A |
| Performance | N/A |
| Jacket | UV stabilized polyvinyl chloride Colors: Gray Wall thickness: 0.030" | 0.76mm Diameter: 0.283" | 7.19mm |
| Final Outside Diameter (inches) | 0.283 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
