OEM Systems Lighting Control for Lutron Universal Control GRX-CBL-346S Equal Cable
LUTRON-GRN
Pricing :
Login for Your Price
Or
- Lutron universal control and power cable
- Equivalent to GRX-CBL-346S (Grafik Eye)
- Twisted, shielded 22 AWG data pair
- Twisted, unshielded 18 AWG power pair
- Low capacitance data pair under 24 pF/FT
- Flame rated PVC jacket with a green stripe
- NEC CM, CEC CMG FT4, RoHS compliant
- 1000 foot spools
- OEM RS-232C, RS-422, and RS-485 data control
- Power pair for up to 300 watts
- Class 2 and class 3 low voltage power
- Systems instrumentation and Control
Specifications
| Product Line: | LUTRON-GRN |
|---|---|
| Description | Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and a 18 AWG stranded, twisted, and unshielded power pair cabled together and overall jacketed. NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | 22 AWG data pair 16-strand annealed bare copper conductors Diameter: 0.030" | 0.75mm Foam polyethylene insulation Wall thickness: 0.013" | 0.33mm Diameter: 0.056" | 1.42mm 100% aluminum/poly foil in 24 AWG 7-strand tinned copper drain |
| Electrical | DC resistance: 15.7 Ω / 1000’ | 51.50 Ω/KM Mutual capacitance: 23.7 pF/FT | 77.74 pF/M Impedance: 65 Ω Velocity of Propagation: 78% Voltage rating: 300V 18 AWG pair conductor DCR: 6.74 Ω / 1000’ | 22.11 Ω/KM Maximum current: (18 AWG) 2.63A@25°C |
| Insulation | 18 AWG power pair 41-strand annealed bare copper conductors Diameter: 0.046" | 1.18mm Semi-rigid polyvinyl chloride insulation Wall thickness: 0.015" | 0.39mm Diameter: 0.077" | 1.95mm |
| Regulatory | NEC: CM 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |

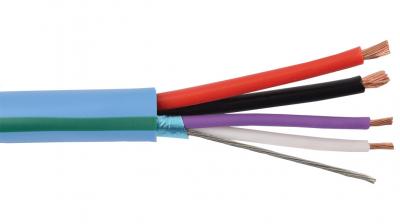

| Color Code | Power pair: Red, Black Data pair: Violet, White |
| Packages | Reel: 1000’ | 305M Weight: 41 Lbs/1000’ | 62 Kg/KM |

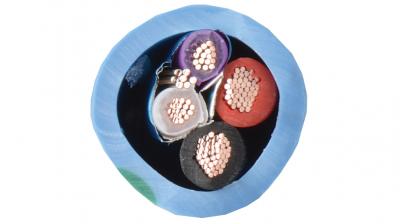

| Assembly | Shielded data pair and power pair cabled on a common axis |
| Installation | Pull Tension: 40 Lbs | 178 N Bend radius: 2.28" | 58mm unloaded Bend radius: 4.56" | 116mm loaded |
| Construct | Ripcord under jacket Special print "Grafik Eye" on jacket |
| Applications | Lutron® universal system control cable for shorter lengths Direct drop in for Lutron GRX-CBL-346S cable Also substitutes for Lutron QSH-CBL-S GRAFIK EYE, GRAFIK EYE QS, Energi Savr Node™ |
| Shield | See individual component descriptions |
| Performance | 3000 Series 16 Accessory controls: 575’ | 175m 4000 Series 16 controls: 300’ | 91m 6000 Series 32 Accessory Controls: 625’ | 190m QS 1 shade 1 keypad: 125’ | 35m |
| Jacket | Flame rated polyvinyl chloride Colors: Light Blue with a green stripe Wall thickness: 0.029" | 0.73mm Diameter: 0.228" | 5.80mm |
| Final Outside Diameter (inches) | 0.228 |
