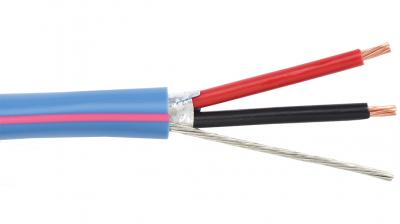

OEM Systems Lighting Control for Lutron Dimmer & Switch 18 AWG 2-Conductor 300V Cable
LUTRON-PNK
Pricing :
Login for Your Price
- 7-strand annealed bare copper conductors
- Semi-rigid PVC insulation
- Twisted, shielded
- Flame rated PVC jacket
- NEC CM, CEC CMG FT4 RoHS compliant
- 1000 foot spools
- OEM systems low voltage dimmer and switch
- Analog Line level Audio, balanced and unbalanced
- Class 2 and class 3 low voltage power
- Systems instrumentation and control
Specifications
| Product Line: | LUTRON-PNK |
|---|---|
| Description | 2 conductor 18 AWG stranded, twisted, and shielded cable NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Component 1: | Electrical |
| 18 AWG 7-strand annealed bare copper conductors Diameter: 0.047" | 1.20mm |
DC resistance: 6.10 Ω / 1000’ | 20.0 Ω/KM Mutual capacitance: 43.8 pF/FT | 143.7 pF/M Impedance: 45.4 Ω Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 3.75A@25°C |
| Component 2: | Regulatory |
| Semi-rigid polyvinyl chloride Wall thickness: 0.015" | 0.38mm Diameter: 0.077" | 1.95mm |
NEC: CL3 60°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Component 3: | Packages |
| 100% aluminum/mylar tape bonded to jacket foil out 20AWG 7-strand tinned copper drain |
Reel: 1000’ | 305M Weight: 41 Lbs/1000’ | 62 Kg/KM |
| Color Code | Installation |
| Red, Black | Pull Tension: 38 Lbs | 169 N Bend radius: 2.13" | 54mm unloaded Bend radius: 4.26" | 108mm loaded |
| Assembly | Applications |
| Ripcord under jacket | Lutron® low voltage dimmer & switch control If line voltage is needed - 18-2C-TRSH-LBL please |
| Construct | Performance |

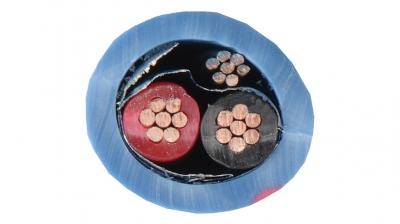

| 2 shielded conductors and drain wire cabled on a common axis |
N/A |
| Jacket | Final Outside Diameter (inches) |
| Flame rated polyvinyl chloride Colors: Light Blue/pink stripe Wall thickness: 0.029" | 0.73mm Diameter: 0.213" | 5.40mm |
0.213 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
