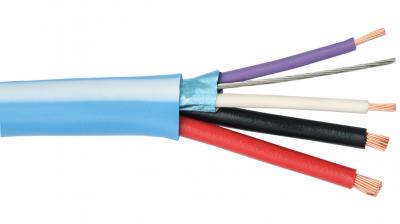

- Lutron universal control and power cable
- Equivalent to QSH-CBL-M
- Twisted, shielded 22 AWG data pair
- Twisted, unshielded 16 AWG power pair
- Low capacitance data pair under 24 pF/FT
- Flame rated PVC jacket
- Suffix QSC - Light blue jacket w/white stripe
- Suffix QSC-WHT - White jacket without a stripe
- NEC CM, CEC CMG FT4, RoHS compliant
- 1000 foot spools
- OEM RS-232C, RS-422, and RS-485 data control
- 16 AWG power pair 200 feet for 1 QS drive unit
- Power pair for up to 500 feet
- Class 2 and class 3 low voltage power
- Systems instrumentation and control
Specifications
| Product Line: | LUTRON-QSC |
|---|---|

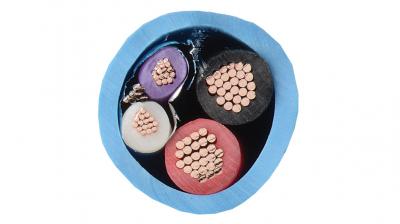

| Description | Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and a 16 AWG stranded, twisted, and unshielded power pair cabled together and overall jacketed. NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Component 1: | Electrical |
| 22 AWG data pair 16-strand annealed bare copper conductors Foam polyethylene insulation Wall thickness: 0.013" | 0.33mm Diameter: 0.056" | 1.42mm 100% aluminum/poly foil in 24 AWG 7-strand tinned copper drain |
22 AWG pair conductor DCR: 15.7 Ω / 1000’ | 51.50 Ω/KM Mutual capacitance: 15.0 pF/FT | 49.2 pF/M Impedance: 65 Ω Velocity of Propagation: 78% Voltage rating: 300V 16 AWG pair conductor DCR: 4.04 Ω / 1000’ | 13.25 Ω/KM Maximum current: 5.0A@25°C |
| Component 2: | Regulatory |
| 16 AWG power pair 26-strand annealed bare copper conductors Semi-rigid polyvinyl chloride insulation Wall thickness: 0.015" | 0.39mm Diameter: 0.090" | 2.28mm |
NEC: CMG 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Component 3: | Packages |
| See individual component descriptions |
Reel: 1000’ | 305M Weight: 41 Lbs/1000’ | 62 Kg/KM |
| Color Code | Installation |
| Data pair: Violet, White Power pair: Red, Black |
Pull Tension: 65 Lbs | 289 N Bend radius: 2.40" | 61mm unloaded Bend radius: 4.80" | 122mm loaded |
| Assembly | Applications |
| Ripcord under jacket | Lutron® universal system control cable for medium lengths Direct drop in for Lutron QSH-PCBL-M cable GRAFIK EYE, GRAFIK INTEGRALE, HOMEWORKS, QS |
| Construct | Performance |
| Shielded data pair and power pair cabled on a common axis | Assuming Sivoia Smart Panel Power: 50 power units no shades 500’ | 152m 25 power units no shades 1000’ | 304m 1 Shade 1 keypad 200’ | 60m 2 shades no keypads 75’ | 23m Small Power Pack - halve the distance |
| Jacket | Final Outside Diameter (inches) |
| Flame rated polyvinyl chloride Colors: Light blue with a white stripe Wall thickness: 0.025" | 0.63mm Diameter: 0.240" | 6.09mm |
0.24 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
