OEM Systems Lighting Control for Lutron Universal Control GRX-CBL-46L Equal Cable
LUTRON-RBL
Pricing :
Login for Your Price

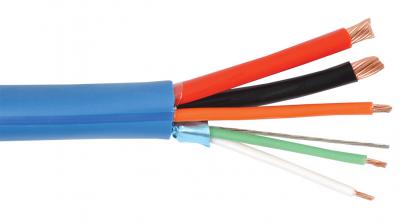

- Lutron universal control and power cable
- Equivalent to GRX-CBL-46L
- Twisted, shielded 22 AWG data pair
- Twisted, unshielded 12 AWG power pair
- 18 AWG unshielded sensor wire
- Low capacitance data pair under 24 pF/FT
- Flame rated PVC jacket with a blue stripe
- NEC CL3, RoHS compliant
- 1000 foot spools
- OEM RS-232C, RS-422, and RS-485 data control
- 12 AWG power pair 500 feet for 1 QS drive unit
- Power pair for up to 1200 feet
- Class 2 and class 3 low voltage power
- Systems instrumentation and control
Specifications
| Product Line: | LUTRON-RBL |
|---|---|
| Description | Composite cable consisting or a 22 AWG stranded, twisted and shielded data pair with a 12 AWG stranded, twisted, and unshielded power pair and a single 18 AWG stranded sensor wire all under one common jacket NEC type CL3. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | 22 AWG data pair 16-strand annealed bare copper conductors Foam polyethylene insulation Wall thickness: 0.013" | 0.33mm Diameter: 0.056" | 1.42mm 100% aluminum/poly foil in 24 AWG 7-strand tinned copper drain |
| Electrical | DC resistance: 15.7 Ω / 1000’ | 51.50 Ω/KM Mutual capacitance: 15 pF/FT | 49.2 pF/M Impedance: 85 Ω Velocity of Propagation: 78% Voltage rating: 300V 18 AWG pair conductor DCR: 6.74 Ω / 1000’ | 22.11 Ω/KM Maximum current: 2.63A@25°C 12 AWG pair conductor DCR: 1.65 Ω / 1000’ | 5.41 Ω/KM Maximum current: 9.6A@25°C |
| Insulation | 12 AWG power pair 19-strand annealed bare copper conductors Semi-rigid polyvinyl chloride insulation Wall thickness: 0.013" | 0.33mm Diameter: 0.118" | 3.00mm |
| Regulatory | NEC: CL3 75°C CEC: N/A EU RoHS-2 2011/65/EU Compliant |
| Color Code | Data pair: Violet, White Power pair: Red, Black Static ground conductor: Orange |
| Packages | Reel: 1000’ | 305M Weight: 84 Lbs/1000’ | 126 Kg/KM |

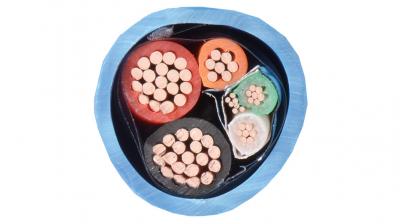

| Assembly | Shielded data pair, power pair and sensor wire cabled on a common axis |
| Installation | Pull Tension: 126 Lbs | 561 N Bend radius: 2.99" | 76mm unloaded Bend radius: 5.98" | 152mm loaded |
| Construct | 100% Polyester tape binder Ripcord under jacket |
| Applications | Lutron® universal system control cable for longer lengths Direct drop in for Lutron GRX-CBL-46L cable Also substitutes for Lutron QSH-CBL-L GRAFIK EYE, GRAFIK INTEGRALE, HOMEWORKS, QS |
| Shield | 18 AWG sensor / ground wire 19-strand annealed bare copper conductors Semi-rigid polyvinyl chloride insulation Wall thickness: 0.015" | 0.38mm Diameter: 0.059" | 1.50mm |
| Performance | N/A |
| Jacket | Flame rated polyvinyl chloride Colors: Light Blue/royal blue stripe Wall thickness: 0.026" | 0.65mm Diameter: 0.299" | 7.60mm |
| Final Outside Diameter (inches) | 0.299 |
