OEM Systems Lighting Control for Lutron Sivoia Shade Control SVQ-CBL Equal Cable
LUTRON-RED
Pricing :
Login for Your Price
Or
- Lutron control and power cable
- Equivalent to SVQ-CBL
- Twisted, shielded 18 AWG shielded quad
- Twisted, unshielded 16 AWG power pair
- 18 AWG single for sensor wire
- Flame rated PVC jacket with a red stripe
- NEC CM, CEC CMG FT4, RoHS compliant
- 1000 foot spools
- OEM window drapery motor power and control
- Class 2 and class 3 low voltage power
- Systems instrumentation and control
Specifications
| Product Line: | LUTRON-RED |
|---|---|

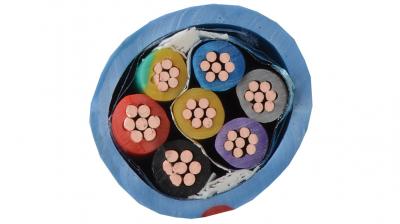

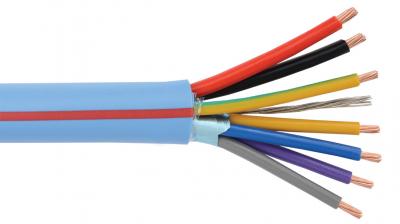

| Description | Composite cable 4 conductor 18 AWG stranded, twisted and shielded with a 2 conductor 16 AWG stranded, twisted, and unshielded power pair and a single 18 AWG stranded sensor wire all under on common jacket NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Component 1: | 18 AWG shielded quad 19-strand annealed bare copper conductors Semi-rigid polyvinyl chloride insulation Wall thickness: 0.014" | 0.35mm Diameter: 0.075" | 1.90mm 100% aluminum/poly shield foil in 20 AWG 7-strand tinned copper drain wire |
| Electrical | 18 AWG quad group conductor DCR: 5.46 Ω / 1000’ | 17.91 Ω/KM Capacitance: 45.34 pF/FT | 148.72 pF/M Impedance: 44 Ω Velocity of Propagation: 55 % Voltage rating: 300V 18 AWG single conductor DCR: 5.46 Ω / 1000’ | 17.91 Ω/KM Maximum current: 2.63A@25°C 16 AWG pair conductor DCR: 1.46 Ω / 1000’ | 4.80 Ω/KM Maximum current: 5.0A@25°C |
| Component 2: | 16 AWG power pair 7-strand annealed bare copper conductors Semi-rigid polyvinyl chloride insulation Wall thickness: 0.015" | 0.37mm Diameter: 0.087" | 2.20mm |
| Regulatory | NEC: CL3 60°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Power pair: Red, Black Control group conductor: Violet, Yellow, Gray, Blue Static ground conductor: Yellow/green stripe |
| Packages | Reel: 500’ | 152M Weight: 94 Lbs/1000’ | 141 Kg/KM |
| Assembly | Shielded quad, power pair and sensor wire cabled on a common axis |
| Installation | Pull Tension: 126 Lbs | 561 N Bend radius: 3.41" | 87mm unloaded Bend radius: 6.82" | 174mm loaded |
| Construct | Fibrillated polypropylene as required for roundness 100% Polyester tape binder Ripcord under jacket |
| Applications | Lutron® shade control cable Direct drop in for Lutron SVQ-CBL cable General purpose Lutron® quiet electronic drive motor control SIVOIA |
| Shield | 18 AWG sensor / ground wire 19-strand annealed bare copper conductors Semi-rigid polyvinyl chloride insulation Wall thickness: 0.014" | 0.35mm Diameter: 0.075" | 1.90mm |
| Performance | N/A |
| Jacket | Flame rated polyvinyl chloride Colors: Light Blue/red stripe Wall thickness: 0.030" | 0.75mm Diameter: 0.341" | 8.65mm |
| Final Outside Diameter (inches) | 0.341 |
