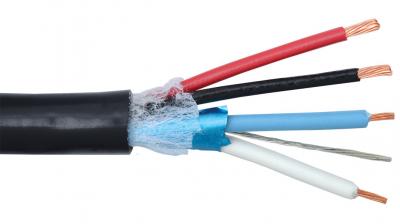

OEM systems Universal Control 22 AWG 1-Pair Shielded and 18 AWG 2-Conductor Composite Direct Burial Cable
LLINX-U-DB
Pricing :
Login for Your Price
Or
- Data pair: 22 AWG stranded, twisted, shielded low cap
- Data pair: 105 Ohm, 12.5 pF/FT low capacitance
- Power pair: 18 AWG stranded, twisted unshielded
- Data and power components cabled on a common axis
- 100% water blocking tape binder
- Ripcord
- UV stabilized PVC, polyvinyl chloride jacket
- Direct burial, sunlight resistant, RoHS compliant
- Outdoor OEM support for AMX universal bus systems
- Outdoor RS-232C, RS-422, RS-485 plus low voltage power
- Outdoor analog and digital audio
Specifications
| Product Line: | LLINX-U-DB |
|---|---|
| Description | Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and an 18 AWG stranded, twisted, and unshielded power pair overall jacketed Sunlight resistant, suitable for direct burial and wet locations. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Component 1: | 22 AWG data pair 7-strand annealed bare copper conductors Foam polyethylene insulation Wall thickness: 0.025" | 0.64mm Diameter: 0.074" | 1.88mm 100% aluminum/poly shield foil in 24 AWG 7-strand tinned copper drain wire |
| Electrical | 22 AWG DC resistance: 15.7 Ω / 1000’ | 51.50 Ω/KM Shield DCR: 22.5 Ω / 1000’ | 73.8 Ω/KM Capacitance: 12.5 pF/FT | 41.0 pF/M Impedance: 105 Ω Velocity of Propagation: 78% Voltage rating: 300V 18 AWG DC resistance: 6.74 Ω / 1000’ | 22.11 Ω/KM Maximum current: (18 AWG) 2.63A@25°C |
| Component 2: | 18 AWG power pair 16-strand annealed bare copper conductors Semi-rigid polyvinyl chloride insulation Wall thickness: 0.010" | 0.25mm Diameter: 0.066" | 1.68mm |
| Regulatory | Sunlight resistant Suitable for direct burial EU RoHS-2 2011/65/EU Compliant |
| Color Code | Data pair: Blue, White Power pair: Red, Black |
| Packages | Reel: 1000’ | 305M Weight: 44 Lbs/1000’ | 66 Kg/KM |

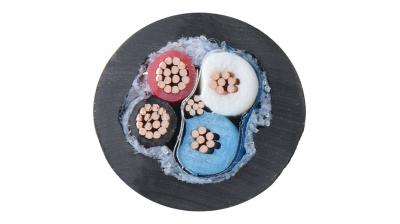

| Assembly | Shielded data pair and power pair cabled on a common axis |
| Installation | Pull Tension: 40 Lbs | 178 N Bend radius: 2.75" | 70mm unloaded Bend radius: 5.50" | 140mm loaded |
| Construct | 100% water blocking tape Ripcord under jacket |
| Applications | LibertyLinx® universal system control cable Outside plant RS-232C, RS-485 simplex data and control Outside plant systems control and communication cable |
| Shield | See individual component descriptions |
| Performance | 18 AWG power: 500 feet maximum |
| Jacket | Flame rated polyvinyl chloride Colors: Black Wall thickness: 0.040" | 1.02mm Diameter: 0.275" | 6.99mm |
| Final Outside Diameter (inches) | 0.275 |
