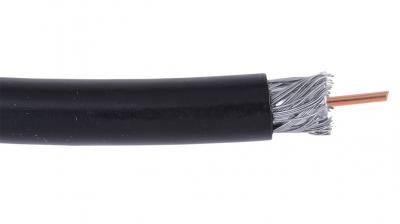

RG6 Bare Copper Dual Shielded Coaxial Outside Plant Cable Swept to 3.0 GHz
RG6-BC-CATV-DB
Pricing :
Login for Your Price
Or
- 18 AWG solid annealed bare copper conductor
- Gas-injected cellular polyethylene dielectric
- Dual shield foil + 60% aluminum + Floodant compound
- Polyethylene jacket
- 3.0 GHz sweep for all CATV through DBS needs
- Direct burial, sunlight resistant, RoHS compliant
- 1000 foot spools
- Outside plant, direct burial
- CATV/MATV and direct broadcast satellite (DBS)
- Cable modem, DC pass circuits
- High frequency RF modulated signals
Specifications
| Product Line: | RG6-BC-CATV-DB |
|---|---|
| Description | 18 AWG solid core bare copper dual shielded RG6 CATV/DBS coaxial cable Sunlight resistant and suitable for direct burial. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820. |
| Conductor | 18 AWG Solid annealed bare copper conductors Diameter: 0.040" | 1.02mm |
| Electrical | DC resistance: 6.51 Ω / 1000’ | 21.35 Ω/KM Shield DCR: 9.70 Ω / 1000’ | 31.80 Ω/KM Mutual capacitance: 16.2 pF/FT | 53.1 pF/M Impedance: 75 ± 3 Ω Velocity of Propagation: 82% Voltage rating: 300V SRL 5-2200 MHz: -20dB SRL 2.2-3 GHz: -17dB |
| Insulation | Foam polyethylene Wall thickness: 0.070" | 1.78mm Diameter: 0.180" | 4.57mm |
| Regulatory | Suitable for direct burial Sunlight resistant EU RoHS-2 2011/65/EU Compliant |
| Color Code | Natural |
| Packages | Reel: 1000’ | 305M Weight: 25 Lbs/1000’ | 38 Kg/KM |
| Assembly | N/A |
| Installation | Pull Tension: 68 Lbs | 302 N Bend radius: 2.72" | 70mm unloaded Bend radius: 5.44" | 140mm loaded |
| Construct | Braid interstices flooded with water repellant silicone compound |
| Applications | Outside plant CATV and DBS modulated video Outside plant CATV and DBS where DC is required Outside plant Broadband video and cable modem |
| Shield | 100% bonded aluminum/poly/aluminum 60% 16x4/34 AWG aluminum braid shield |
| Performance | CATV to 237 feet DBS to 158 feet |
| Jacket | Polyethylene Colors: Black Wall thickness: 0.030" | 0.76mm Diameter:0.272" | 6.91mm |
| Final Outside Diameter (inches) | 0.272 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
