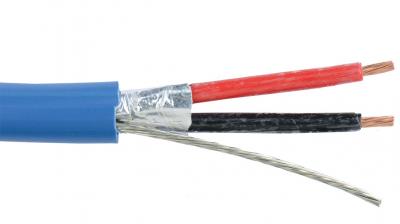

OEM Systems Lighting Control for Lutron Dimmer & Switch 18 AWG 2-Conductor 600V Tray Cable
18-2C-TRSH-LBL
Pricing :
Login for Your Price
- Stranded annealed bare copper conductors
- Dual layer PVC/Nylon insulation and sheathing
- Twisted, shielded
- 600V, UV resistant, direct burial
- TC rated, 90C dry
- High voltage control and power 600V
- Outdoor speaker, underground
- Tray, lighting, industrial instrumentation
Specifications
| Product Line: | 18-2C-TRSH |
|---|---|
| Description | 2 conductor 18 AWG stranded, twisted, and shielded cable NEC type TC. Product manufactured compliant to the requirements of UL1277 for installations and applications in accordance with NEC article 336. |
| Conductor | 18 AWG 7-strand annealed bare copper conductors Diameter: 0.0454" | 1.15mm |
| Electrical | DC resistance: 6.92 Ω / 1000’ | 22.7 Ω/KM Mutual capacitance: 39.8 pF/FT | 130.54 pF/M Velocity of Propagation: 55% Voltage rating: 600V Maximum current: 6.0A@25°C |
| Insulation | Polyvinyl chloride Wall thickness: 0.015" | 0.38mm Diameter: 0.075" | 1.92mm Nylon sheath Wall thickness: 0.005" | 0.13mm Diameter: 0.085" | 2.16mm |
| Regulatory | NEC: TC 90°C Suitable for direct burial Sunlight resistant EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red |
| Packages | Reel: 1000’ | 305M Weight: 42 Lbs/1000’ | 63 Kg/KM |
| Assembly | 2 conductors twisted Lay length: 3.0" | 80mm 4.0 twists per foot | 12.5 twists per meter |
| Installation | Pull Tension: 35 Lbs | 156 N Bend radius: 2.60" | 66mm unloaded Bend radius: 5.20" | 132mm loaded |
| Construct | Ripcord under jacket |
| Applications | Tray cable applications for line, lighting, and control Line voltage lighting dimmer & switch applications Outside plant speaker level audio Outside plant 70V commercial speaker audio |
| Shield | 100% aluminum/polyester tape foil out 20 AWG 7-strand tinned copper drain |
| Performance | Speaker level audio to 30 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Light blue Wall thickness: 0.045" | 1.14mm Diameter: 0.260" | 6.60mm |
| Final Outside Diameter (inches) | 0.26 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
