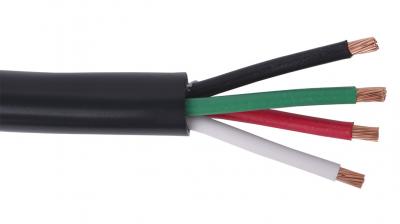

Direct Burial Speaker Cable 12 AWG 4-Conductor Cable
12-4C-DB
Pricing :
Login for Your Price
Or
- 19-strand annealed bare copper conductors
- Low density polyethylene insulation
- Twisted, unshielded
- UV stabilized PVC jacket
- NEC CL3, direct burial, sunlight resistant, RoHS compliant
- 500 foot spools
- Outside plant speaker level audio
- 70 volt speaker cabling
- Low voltage lighting
- Class 2 and class 3 low voltage power
- Instrumentation and control
Specifications
| Product Line: | 12-4C-DB |
|---|---|

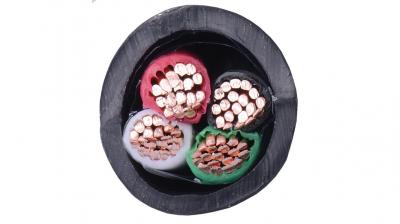

| Description | 4 conductor 12 AWG stranded, twisted, and unshielded cable NEC type CL3, Suitable for Direct Burial and Sunlight Resistant. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. |
| Conductor | 12 AWG 19-strand annealed bare copper conductors Diameter: 0.090" | 2.29mm |
| Electrical | DC resistance: 1.59 Ω / 1000’ | 5.22 Ω/KM Mutual capacitance: 22.30 pF/FT | 73.14 pF/M Impedance: 70 Ω Inductance: 0.15µH/FT | 0.49µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 9.6A@25°C |
| Insulation | High density polyethylene Wall thickness: 0.012" | 0.30mm Diameter: 0.114" | 2.89mm |
| Regulatory | NEC: CL3 75°C Sunlight resistant Suitable for direct burial EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red, White, Green |
| Packages | Reel: 1000’ | 305M Weight: 131 Lbs/1000’ | 196 Kg/KM |
| Assembly | 4 conductors twisted Lay length: 4.0" | 100mm 3.0 twists per foot | 10.0 twists per meter |
| Installation | Pull Tension: 196 Lbs | 872 N Bend radius: 3.72" | 95mm unloaded Bend radius: 7.44" | 190mm loaded |
| Construct | 100% Mylar tape binder |
| Applications | General purpose and Outside plant speaker level audio Outside plant 70V commercial speaker audio Outside plant rated Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 120 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Black Wall thickness: 0.045" | 1.14mm Diameter: 0.372" | 9.45mm |
| Final Outside Diameter (inches) | 0.372 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
