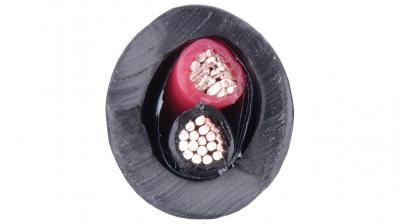

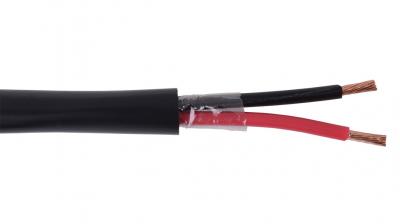

Direct Burial Speaker Cable 16 AWG 2-Conductor Cable
16-2C-DB
Pricing :
Login for Your Price
Or
- 19-strand annealed bare copper conductors
- Low density polyethylene insulation
- Twisted, unshielded
- UV stabilized PVC jacket
- NEC CL3, direct burial, sunlight resistant, RoHS compliant
- 1000 foot spools
- Outside plant speaker level audio
- 70 volt speaker cabling
- Low voltage lighting
- Class 2 and class 3 low voltage power
- Instrumentation and control
Specifications
| Product Line: | 16-2C-DB |
|---|---|
| Description | 2 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CL3, Suitable for Direct Burial and Sunlight Resistant. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. |
| Conductor | 16 AWG 19-strand annealed bare copper conductors Diameter: 0.056" | 1.42mm |
| Electrical | DC resistance: 4.38 Ω / 1000’ | 14.36 Ω/KM Mutual capacitance: 20.4 pF/FT | 66.9 pF/M Impedance: 76 Ω Inductance: 0.16µH/FT | 0.52µH/M Velocity of Propagation: 66% Voltage rating: 300V Maximum current: 6.25A@25°C |
| Insulation | Polyethylene Wall thickness: 0.008" | 0.20mm Diameter: 0.075" | 1.91mm |
| Regulatory | NEC: CL3 75°C Suitable for direct burial Sunlight resistant EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red |
| Packages | Reel: 1000’ | 305M Weight: 42 Lbs/1000’ | 63 Kg/KM |
| Assembly | 2 conductors twisted Lay length: 4.0" | 100mm 3.0 twists per foot | 10.0 twists per meter |
| Installation | Pull Tension: 39 Lbs | 174 N Bend radius: 2.40" | 61mm unloaded Bend radius: 4.80" | 122mm loaded |
| Construct | 100% Mylar tape binder |
| Applications | General purpose and Outside plant speaker level audio Outside plant 70V commercial speaker audio Outside plant rated Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 50 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Black Wall thickness: 0.045" | 1.14mm Diameter: 0.240" | 6.10mm |
| Final Outside Diameter (inches) | 0.24 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
