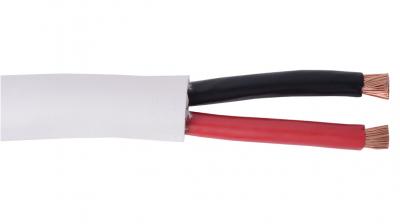

EXTRAFLEX 10 AWG 2-Conductor Heavy-Duty Speaker Cable
10-2C-EX+-WHT
Pricing :
Login for Your Price
- 105-strand oxygen-free copper conductors
- Semi-rigid PVC insulation
- Twisted, unshielded with paper tape binder
- Semi-pressured flame rated PVC jacket
- NEC CL2, CEC CMG FT4 audio only, RoHS compliant
- 500 foot spool standard
- Speaker level audio, home theater grade
- High wattage systems and infrastructure
- Class 2 low voltage power
Specifications
| Product Line: | 10-2C-EX+ |
|---|---|
| Description | 2 conductor 10 AWG stranded, twisted, and unshielded cable NEC type CL2 and CEC type CMG FT4 for Audio Only. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. |
| Conductor | 10 AWG 105-strand oxygen free copper conductors Diameter: 0.118" | 3.00mm |
| Electrical | DC resistance: 1.07 Ω / 1000’ | 3.51 Ω/KM Mutual capacitance: 46.0 pF/FT | 150.9 pF/M Impedance: 47 Ω Inductance: 0.15µH/FT | 0.49µH/M Velocity of Propagation: 55% Voltage rating: 150V Maximum current: 27.8A@25°C |
| Insulation | Semi-rigid polyvinyl chloride Wall thickness: 0.016" | 0.41mm Diameter: 0.150" | 3.81mm |
| Regulatory | NEC: CL2 75°C CEC: CMG FT4 For Audio Ωnly 60°C EU RoHS 2002/95/EC Compliant |
| Color Code | Black, Red |
| Packages | Reel: 1000’ | 305M Weight: 99 Lbs/1000’ | 147 Kg/KM |
| Assembly | 2 conductors twisted Lay length: 4" | 100mm 3 twists per foot | 10.0 twists per meter |
| Installation | Pull Tension: 250 Lbs | 751 N Bend radius: 3.85" | 98mm unloaded Bend radius: 7.70" | 196mm loaded |
| Construct | 100% Paper tape binder Ripcord under jacket |
| Applications | General purpose speaker level audio Non‐plenum 70V commercial speaker audio Non‐Plenum Class 2 power |
| Shield | N/A |
| Performance | Speaker level audio to 200 feet |
| Jacket | Pressure extruded polyvinyl chloride Colors: Natural white Wall thickness: 0.040" | 1.02mm Diameter: 0.385" | 9.78mm |
| Final Outside Diameter (inches) | 0.385 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
