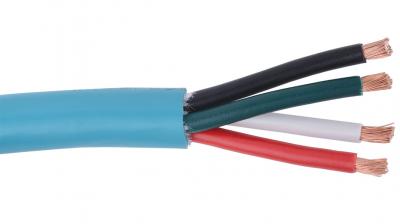

EXTRAFLEX 12 AWG 4-Conductor Heavy-Duty Speaker Cable
12-4C-EX+-WHT
Pricing :
Login for Your Price
- 105-strand oxygen-free copper conductors
- Semi-rigid PVC insulation
- Twisted, unshielded with paper tape binder
- Semi-pressured flame rated PVC jacket
- NEC CL3, CEC CMG FT4 Audio Only, RoHS compliant
- 500 foot spools
- Speaker level audio, home theater grade
- Best applications below 120 feet
- Class 2 and 3 low voltage power
Specifications
| Product Line: | 12-4C-EX+ |
|---|---|
| Description | 4 conductor 10 AWG stranded, twisted, and unshielded cable NEC type CL3 and CEC type CMG FT4 for Audio Only Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. |
| Conductor | 12 AWG 105-strand oxygen free copper conductors Diameter: 0.093" | 2.36mm |
| Electrical | DC resistance: 1.58 Ω / 1000’ | 5.18 Ω/KM Mutual capacitance: 34.0 pF/FT | 111.52 pF/M Impedance: 60 Ω Inductance: 0.17µH/FT | 0.55µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 9.6A@25°C |
| Insulation | Semi-rigid polyvinyl chloride Wall thickness: 0.016" | 0.42mm Diameter: 0.126" | 3.2mm |
| Regulatory | NEC: CL3 75°C CEC: CMG FT4 For Audio Only 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red, White, Green |
| Packages | Reel: 500’ | 152M Weight: 114 Lbs/1000’ | 170 Kg/KM |
| Assembly | 4 conductors twisted Lay length: 3.0" | 80mm 4.0 twists per foot | 12.5 twists per meter |
| Installation | Pull Tension: 212 Lbs | 944 N Bend radius: 3.78" | 96mm unloaded Bend radius: 7.56" | 192mm loaded |
| Construct | 100% Paper tape binder Ripcord under jacket |
| Applications | General purpose speaker level audio General purpose 70V commercial speaker audio General purpose Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 120 feet |
| Jacket | Pressure extruded polyvinyl chloride Colors: Teal, White Wall thickness: 0.036" | 0.91mm Diameter: 0.378" | 9.60mm |
| Final Outside Diameter (inches) | 0.378 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
