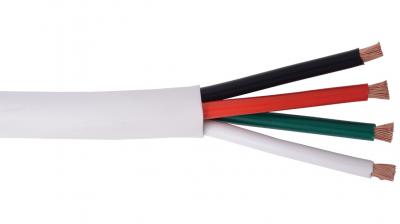

KnockOut 14 AWG 4-Conductor Speaker Cable
14-4C-KO+
Pricing :
Login for Your Price
Or
- 65-strand annealed bare copper conductors
- Semi-rigid PVC insulation
- Twisted, unshielded
- Heavy duty general purpose rated PVC jacket
- NEC CL3, CEC CMG FT4 for audio only, RoHS compliant
- Speaker level audio distribution
- 70V speaker systems
- DC power, class 2 and class 3 power, system control
Specifications
| Product Line: | 14-4C-KO+ |
|---|---|

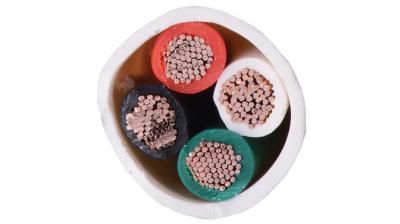

| Description | 4 conductor 14 AWG stranded, twisted, and unshielded cable NEC type CL3 and CEC type CMG FT4 for Audio Only. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. |
| Conductor | 14 AWG 65-strand annealed bare copper conductors Diameter: 0.074" | 1.89mm |
| Electrical | DC resistance: 2.58 Ω / 1000’ | 8.46 Ω/KM Mutual capacitance: 32.5 pF/FT | 106.60 pF/M Impedance: 64 Ω Inductance: 0.16µH/FT | 0.52µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 6.4A@25°C |
| Insulation | Semi-rigid polyvinyl chloride Wall thickness: 0.016" | 0.41mm Diameter: 0.106" | 2.7mm |
| Regulatory | NEC: CL3 75°C CEC: CMG FT4 For Audio Only 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red, White, Green |
| Packages | Reel: 1000’ | 305M Reel: 500’ | 152M Weight: 85 Lbs/1000’ | 127 Kg/KM |
| Assembly | 4 conductors twisted Lay length: 4.0" | 100mm 3.0 twists per foot | 10.0 twists per meter |
| Installation | Pull Tension: 132 Lbs | 588 N Bend radius: 3.07" | 78mm unloaded Bend radius: 6.14" | 156mm loaded |
| Construct | Ripcord under jacket |
| Applications | General purpose speaker level audio General purpose 70V commercial speaker audio General purpose Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 80 feet |
| Jacket | Flame rated polyvinyl chloride Colors: White, Light Green Wall thickness: 0.025" | 0.635mm Diameter: 0.307" | 7.79mm |
| Final Outside Diameter (inches) | 0.307 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
