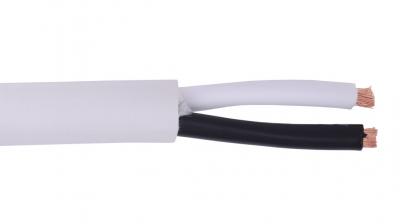

THX Certified 12 AWG 1-Pair Speaker Cable
12-1P-UC
Pricing :
Login for Your Price
Or
- 261-strand annealed bare copper conductors
- Cellular polyethylene insulation
- Twisted, unshielded with paper tape binder
- Semi-pressured flame rated PVC jacket
- THX certified and low capacitance
- NEC CL3R, CEC CMG FT4 audio only, RoHS compliant
- 1000 foot spools
- Speaker level audio, home theater grade
- Best applications below 120 feet
- Class 2 and 3 low voltage power
Specifications
| Product Line: | 12-1P-UC |
|---|---|
| Description | 2 conductor 12 AWG stranded, twisted, and unshielded cable NEC type CL3R and CEC type CMG FT4 for Audio Only. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. THX™ Certified Speaker Cable for Custom Installation and Design. |
| Conductor | 12 AWG 261-strand annealed bare copper conductors Diameter: 0.106" | 2.68mm |
| Electrical | DC resistance: 1.75 Ω / 1000’ | 5.74 Ω/KM Mutual capacitance: 18.6 pF/FT | 61.0 pF/M Impedance: 77 Ω Inductance: 0.17µH/FT | 0.55µH/M Velocity of Propagation: 66% Voltage rating: 300V Maximum current: 12A@25°C |
| Insulation | Polyethylene Wall thickness: 0.020" | 0.50mm Diameter: 0.145" | 3.68mm |
| Regulatory | NEC: CL3R 75°C CEC: CMG FT4 For Audio Only 60°C THX™ Certified Speaker Cable EU RoHS-2 2011/65/EU Compliant |
| Color Code | White printed in black ink Black printed ------ in white ink |
| Packages | Reel: 1000’ | 305M Weight: 93 Lbs/1000’ | 139 Kg/KM |

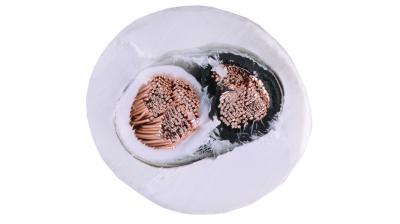

| Assembly | 2 conductors twisted Lay length: 2.5" | 63.5mm 4.8 twists per foot | 15.75 twists per meter |
| Installation | Pull Tension: 169 Lbs | 751 N Bend radius: 3.89" | 99mm unloaded Bend radius: 7.78" | 198mm loaded |
| Construct | 100% Paper tape binder Ripcord under jacket |
| Applications | Riser commercial and residential speaker level audio Riser 70V commercial speaker audio Riser Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 120 feet |
| Jacket | Pressure extruded polyvinyl chloride Colors: Natural white, Black Wall thickness: 0.050" | 1.27mm Diameter: 0.389" | 9.88mm |
| Final Outside Diameter (inches) | 0.389 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
