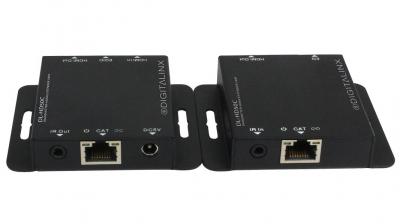

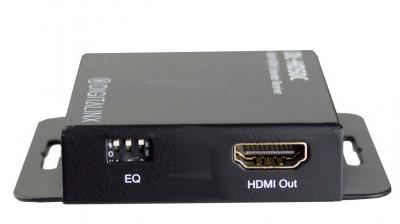

DL-HD50C - Digitalinx Series HDMI 1.4 Extender Set Over POC w/ Loop Output, IR & CEC

Digitalinx Series HDMI 1.4 Extender Set Over POC w/ Loop Output, IR & CEC

4K@30Hz HDMI extension over single category cable w/IR and HDMI loop out up to 230ft/70m
DL-HD50C
  • Overview: Transmit Video up to 4K30 w/ Multi-Channel Audio & IR over one Category Cable
  • Maximum Transmission Distance: CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
  • Video Resolutions: Supports a full range of resolutions up to 4K30

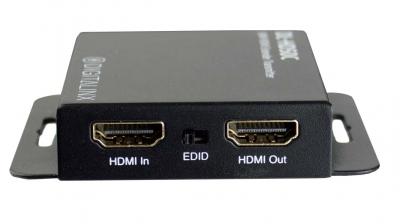

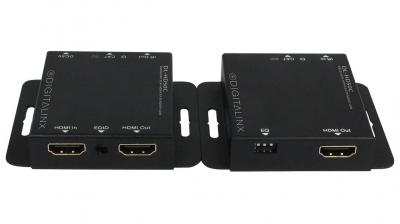

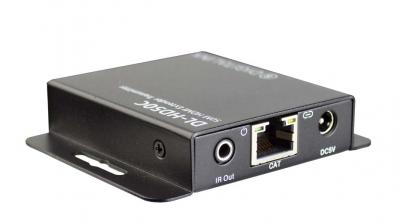

  • HDMI Loop Output: HDMI Transmitter is equipped with a 2 port HDMI splitter; HDMI output on the Transmitter can connect to a local display for preview monitoring
  • Audio Protocols: up to 7.1ch digital audio

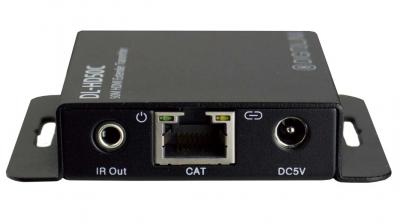

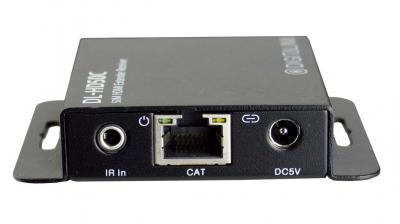

  • Control Protocols: Extend IR and CEC control
  • Compliance:  HDMI and HDCP 1.4 backwards compatible

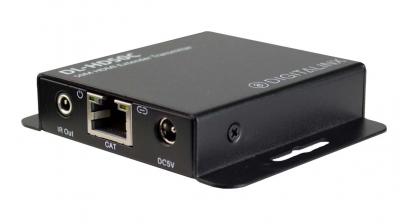

  • Power Over Cable (PoC): PoC allows one power adapter on the transmit side to power both the transmitter and receiver
  • Dimensions: 79.5mm[W] x 69mm[D] x 16.5mm[H]
  • Package includes: HDMI Extender Set (Transmitter & Receiver units,) One IR Blaster, One IR Reciever, One Power supply and a user manual
  • Complete Plug and Play: No additional setup or configuration
  • Compatible HDMI Source Devices: HDMI sources, such as gaming consoles, AVRs, computer PCs, Blu-ray players, and media players
  • Compatible HDMI Display (snyc) Devices: HDMI displays, monitors, projectors, and HDTVs

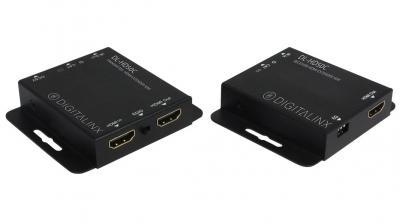

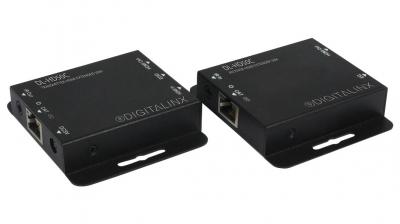

  • Other: This kit is point-to-point and comes with a Transmitter and Receiver. It’s not intended to work through routers or network switches
  • Country of Origin:  China
  • Regulatory approvals: FCC, CE, RoHS
  • Extension of HDMI/DVI signals
  • Plenum longer distance HDMI/DVI Extension
  • Small space issues where TWP can be run but not HDMI
