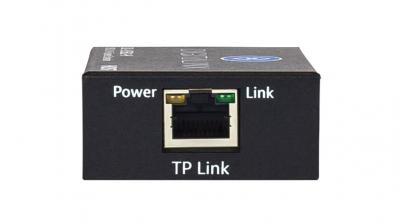

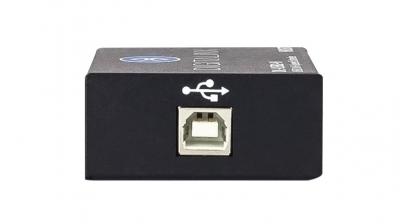

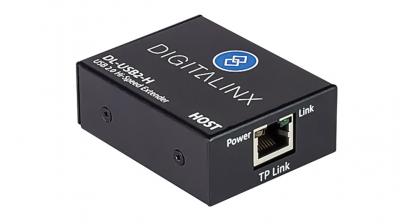

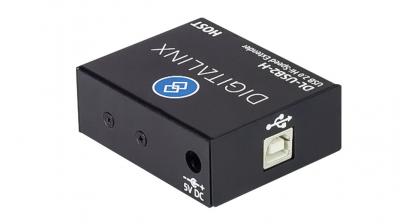

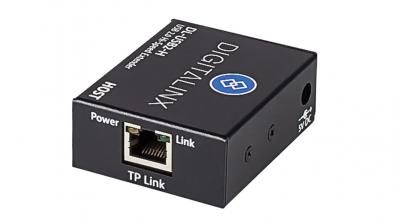

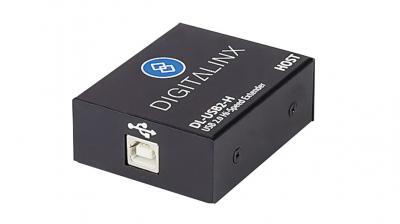

USB 2.0 Hi-Speed Twisted Pair Extender Host
The Digitalinx DL-USB2 products will extend a Hi-Speed USB 2.0 signal (480 Mbps) up to 100 meters (328 feet). The modular extenders may be powered on either end for low power devices such as keyboards or mice. For remote devices which require more power, the client side extender will require to be powered.
Initial offerings in the product line include a modular USB host transmitter (DL-USB2-H), a modular USB client receiver (DL-USB2-C), a wall plate USB host transmitter (DL-USB2-WP-H), and a wall plate USB receiver (DL-USB2-WP-C). All combinations of host and client are compatible with each other.
- Extends USB Hi-Speed (480 Mbps) up to 100 m (330 ft)
- Powered from client side extender
- Uses any Cat5e/6/6A twisted pair cabling
- Supplies 500mA to USB devices
- Can also be used to extend USB 1.1 signals
- Does not support applications requiring Isochronous data mode. Use DIGI-USB2 for these applications
