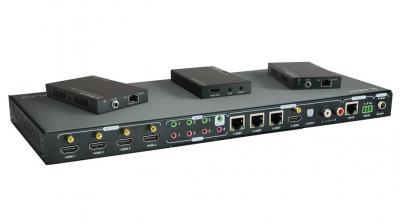

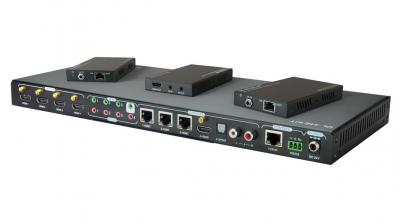

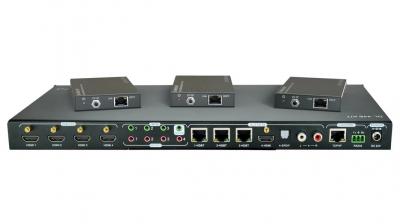

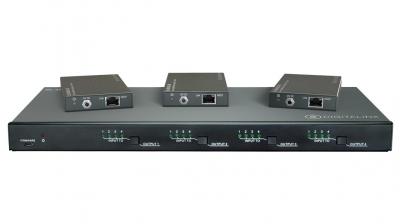

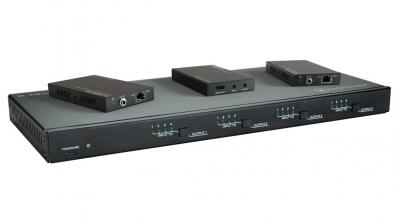

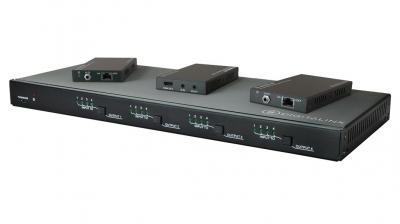

4X4 4K HDBT Matrix Switch kitted with 3 HDBaseT PoE receivers
The DL-44E-KIT is a professional 4K HDBaseT home distribution hub kit, which consists of a 4K HDBaseT matrix switcher, 3 HDBaseT receivers and accessories. The DL-44E-KIT is a professional 4x4 HDBaseT matrix switcher that consist of the following inputs and outputs: 4 HDMI IN (4kx2K@60Hz signal at max), 3 IR IN, 1 IR EYE, 4 IR OUT, 3 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via phoenix connector. The DL-44E-KIT offers manual HDCP management and auto-detecting along with easy installation with rack-mounting design.
The DL-HD70LS-RX is an HDBaseT receiver that consists of the following inputs and outputs: 1 HDBaseT IN, 1 IR IN, 1 IR OUT and HDMI OUT. The receiver is powered directly by the DL-44E-KIT. All HDMI inputs can be selected by either the front panel buttons, IR, RS232 or GUI. The selected source is delivered to HDBaseT zoned outputs 1-3 & HDMI output.
The DL-44E-KIT is capable of delivering 4K signals up to 40m, 1080p up to 70m and powering the receivers via a single CAT5e cable. It is recommended to use good quality CAT6 cable. The Matrix Switcher supports EDID management and is HDCP 2.2, 1.4 compliant. Audio sources can be selected via RS232 commands and TCP/IP at the matrix switcher or by 3rd party control.
- Four HDMI inputs with 4K & HDCP 2.2 support
- 3 HDBaseT with PoE outputs
- 1 HDMI output
- 3 HDBaseT receivers kitted with the switch
- 70m maximum extender distance
- Analog and digital audio de-embedding on the HDMI output
- Front panel, IR, TCP/IP, and RS232 control
- IR tunneling over HDBaseT
- Control page and configuration accessible from web browser
- Advanced HDCP management
- True matrix routing and distribution of HDMI signals
- A/V routing in environments with demanding control system
- Ideal for houses of worship, corporate video conferencing,
