2x2 4K HDMI Matrix Switch with audio de-embedding and IR and pushbutton control
The DigitaLinx DL-S22 is a two input by two output slim HDMI matrix with Ultra HD 4K support. The DL-S22 is HDCP 1.4 compliant and supports resolutions up to 4K@30Hz and 1080p@60Hz. Built-in diagnostic LEDs ensure hassle-free and robust installations.
The DL-S22 features two advanced technologies: automatic EDID management, which provides Copy EDID options for different resolutions output, and HDCP management, which authenticates HDCP encryption between all devices, ensuring the HDMI source reliably outputs correct content for display.

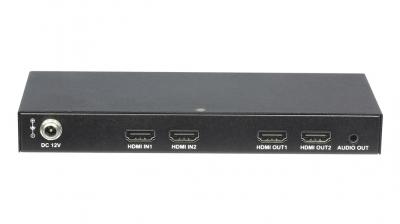

The matrix switcher supports CEC control to turn on/off the TV and offers a stereo audio output. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.
- Routes 2 Ultra HD sources to 2 Ultra HD displays
- HDCP Compliant
- Supports resolutions up to Ultra HD 4K@30Hz
- Analog stereo audio de-embedded from output 2

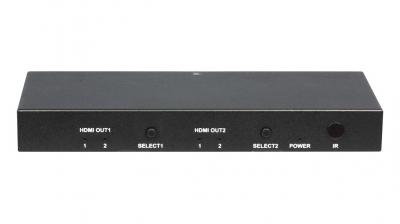

- IR Remote and Push button controls for Routing
- Automatic input signal equalization and regeneration
- HDMI Multimedia Switching and Distribution
- Digital Signage Applications
- Restaurant and Bar, Residential HDMI distribution
