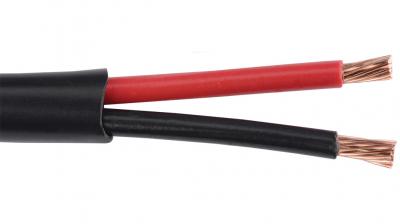

Commercial Grade General Purpose 16 AWG 2-Conductor Cable
16-2C
Pricing :
Login for Your Price
Or
- 19-strand annealed bare copper conductors
- Semi-rigid PVC insulation
- Twisted, unshielded
- Riser rated PVC jacket
- NEC CL3R, CEC CMG, RoHS compliant
- Speaker level audio distribution
- 70V speaker systems
- DC power, class 2 and class 3 power, system control
Specifications
| Product Line: | 16-2C |
|---|---|
| Description | 2 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |

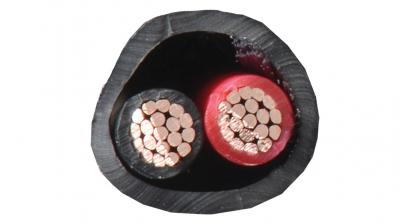

| Conductor | 16 AWG 19-strand annealed bare copper conductors Diameter: 0.056" | 1.42mm |
| Electrical | DC resistance: 4.38 Ω / 1000’ | 14.36 Ω/KM Mutual capacitance: 32.0 pF/FT | 104.96 pF/M Impedance: 58 Ω Inductance: 0.15µH/FT | 0.49µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 6.25A@25°C |
| Insulation | Semi-rigid polyvinyl chloride Wall thickness: 0.010" | 0.25mm Diameter: 0.076" | 1.93mm |
| Regulatory | NEC: CMR 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red |
| Packages | Reel: 1000’ | 305M Weight: 27 Lbs/1000’ | 41 Kg/KM |
| Assembly | 2 conductors twisted Lay length: 3.0" | 80mm 4.0 twists per foot | 12.5 twists per meter |
| Installation | Pull Tension: 42 Lbs | 187 N Bend radius: 1.90" | 49mm unloaded Bend radius: 3.80" | 98mm loaded |
| Construct | Ripcord under jacket |
| Applications | Riser commercial and residential speaker level audio General purpose 70V commercial speaker audio General purpose Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 50 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Gray Wall thickness: 0.020" | 0.51mm Diameter: 0.190" | 4.83mm |
| Final Outside Diameter (inches) | 0.19 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
