HDMI Over IP Encoder - Scalable 4K Solution over 1Gb Network w/ full Matrix & Video wall Capability

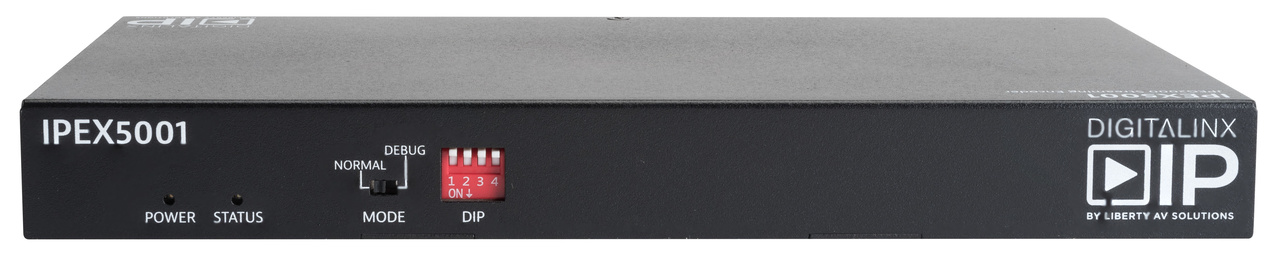

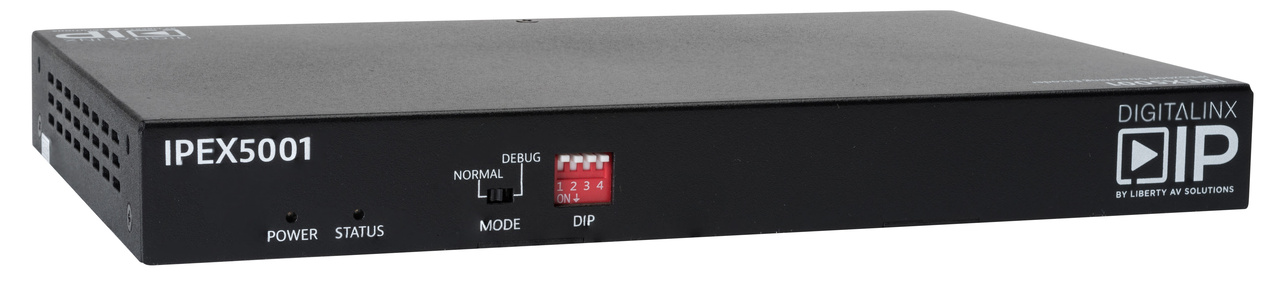

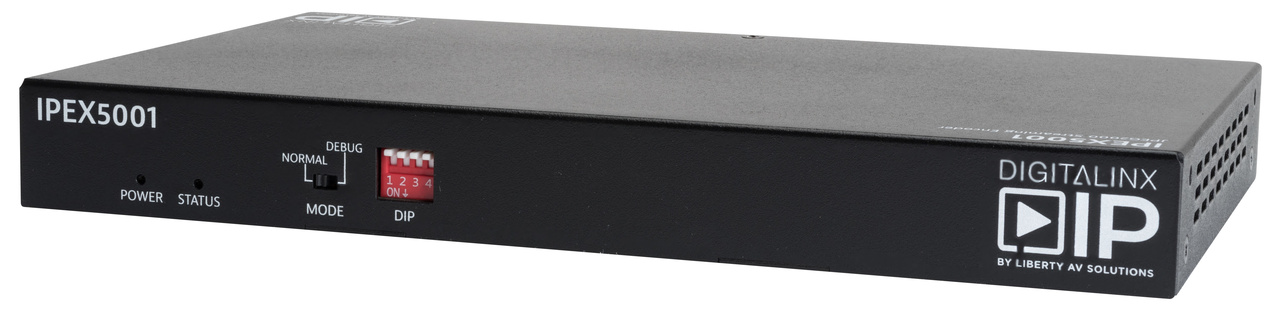

The Digitalinx IP IPEX5001 transmits HDMI video and audio over a 1 gigabit network infrastructure using JPEG2000 encoding with a variable data rate at an average of 250 Mbps with peak values up to 850Mbps. The IPEX5001 supports video signals up to 4K at 60 Hz 4:2:0 / 8 bit color with HDR10, HDCP 2.2 and multichannel audio support. An analog audio input port embeds analog audio with the video content, such as a DVI video source. An analog audio output port de-embeds stereo 2 channel audio from the HDMI content, while still passing stereo 2 channel audio to the HDMI output.

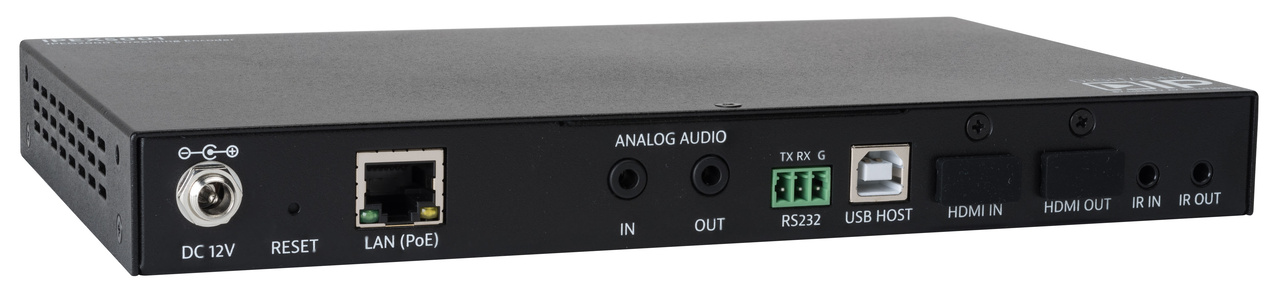

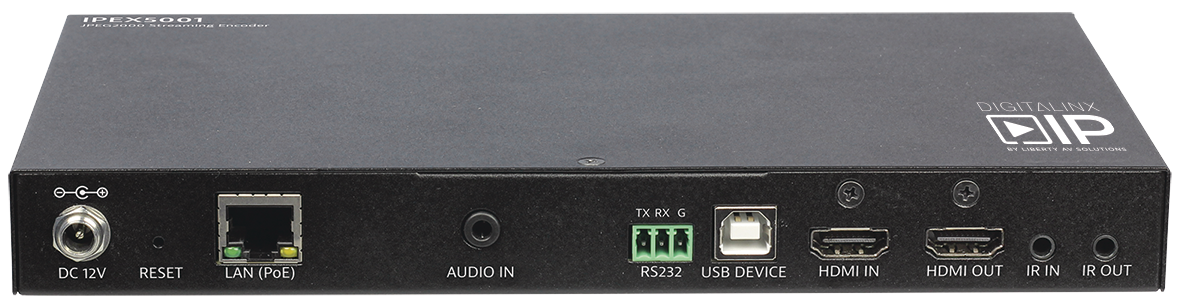

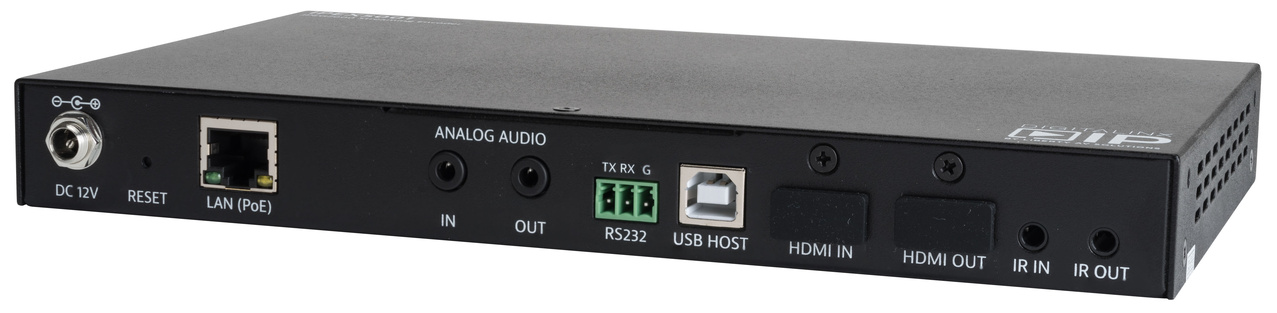

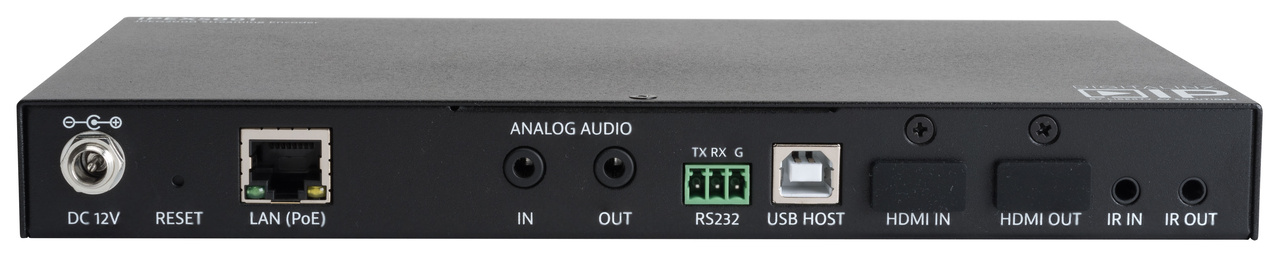

The IPEX5001 supports PoE power and can be powered remotely via PoE network switch eliminating the need for a nearby power outlet. The RS232 port relays commands from the IPEXCB controller and operates in a pass through mode to control a third party device such as a TV display or HDMI switcher. The USB host port connection is for connecting USB host devices such as a computer that is USB 2.0 Full Speed compliant up to 12Mbps that can communicate with client side devices connected to a decoder. USB routing follows the video route by default however USB communication can be free routed via API. The IPEX5001 features bi-directional IR support.
- HDMI video and audio over a gigabit IP network using JPEG2000 encoding
- Video signals up to 4K HDR (static) with HDCP 2.2 and 7.1 multichannel audio
- Up & Down scaling capability up to 4K
- Supports video walls with bezel compensation
- Analog audio input & output ports embed & de-embeds audio for local use or extension of embedded audio
- RS232 port can control and send commands to 3rd party devices
- IR in and out for 2 way IR control
- USB connection passes keyboard and mouse signals from decoder to encoder
- Supports PoE and can be powered remotely
- Combine IPEX5001 encoder with DL-PSMV62 to add multi-view windowing capability to any 5000 series DigiIP system
- Video Distribution, Digital Signage, Residential, Restaurant, Bar, Entertainment, Hospitality
- Large Scale HDMI distribution
- Video Wall
- 4K Distribution
