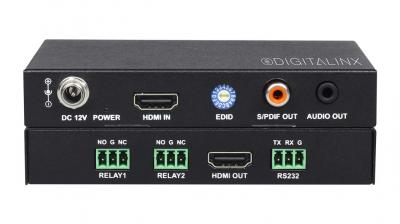

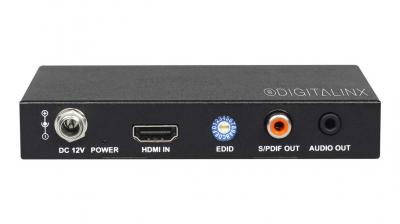

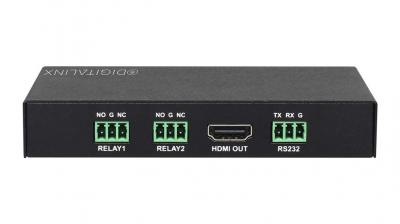

DigitaLinx HDMI2.0 Auto Sensing Room Controller
The DigitaLinx DL-UHDILC is an HDMI in-line controller that can automate room peripherals and sink devices when a video signal is introduced to the unit. The DL-UHDILC is 4K compatible, supports HDCP version 2.2, has an analog and digital de-embedded audio output and has 15 built in EDID presets that can be adjusted by the rotary dial on the front panel.
When the DL-UHDILC auto-detects an input video signal, the DL-UHDILC will automatically turn a display or projector on either by CEC or by pre-loaded RS232 serial commands. The DL-UHDILC will trigger the first relay port to switch a projector screen or window shade down. When a video signal is no longer present after a specified amount of time, the DL-UHDILC will turn off the display or projector by either CEC or pre-loaded RS232 commands and will trigger the second relay port to switch a projector screen or window shade up.
- Stand alone signal sensing controller powers on/off display when signal is presented/removed
- Automates room peripherals when video signal is introduced to system via RS232 or CEC and Contact closures
- Passes HDMI & HDMI 2.0 signals up to 18G 4K60 4:4:4
- Built in CEC controller from HDMI out.
- Built in RS232 controller to control display device
- Built in RELAY control for room peripherals such as projector screen or window shade
- De-embeds audio to coax S/PDIF or Stereo
- Switch for EDID Management with 15 EDID presets
- Simply connect your HDMI source to trigger RS232 and relay commands
- Automated system control for small HDMI applications
- Small Boardroom, Huddle Room, Education applications
- Residential Flat Panel and theater control
