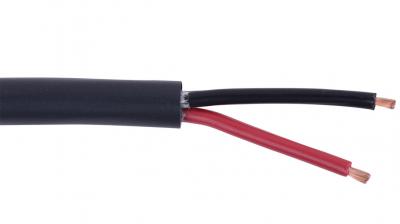

EXTRAFLEX 16 AWG 2-Conductor Heavy-Duty Speaker Cable
16-2C-EX+
Pricing :
Login for Your Price
Or
- 105-strand oxygen-free copper conductors
- Semi-rigid PVC insulation
- Twisted, unshielded with paper tape binder
- Semi-pressured flame rated PVC jacket
- NEC CM, CEC CMG FT4 audio only, RoHS compliant
- 1000 foot spools
- Speaker level audio, home theater grade
- Best applications below 50 feet
- Class 2 and 3 low voltage power
Specifications
| Product Line: | 16-2C-EX+ |
|---|---|
| Description | 2 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | 16 AWG 105-strand oxygen free copper conductors Diameter: 0.059" | 1.50mm |
| Electrical | DC resistance: 4.02 Ω / 1000’ | 13.18 Ω/KM Mutual capacitance: 27.3 pF/FT | 89.5 pF/M Impedance: 73 Ω Inductance: 0.16µH/FT | 0.52µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 6.25A@25°C |
| Insulation | Semi-rigid polyvinyl chloride Wall thickness: 0.016" | 0.41mm Diameter: 0.091" | 2.32mm |
| Regulatory | NEC: CL3 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red |
| Packages | Reel: 1000’ | 305M Weight: 44 Lbs/1000’ | 66 Kg/KM |
| Assembly | 2 conductors twisted Lay length: 4.0" | 100mm 3.0 twists per foot | 10.0 twists per meter |
| Installation | Pull Tension: 42 Lbs | 187 N Bend radius: 2.55" | 65mm unloaded Bend radius: 5.10" | 130mm loaded |
| Construct | 100% Paper tape binder Ripcord under jacket |
| Applications | General purpose speaker level audio General purpose 70V commercial speaker audio General purpose Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 50 feet |
| Jacket | Pressure extruded polyvinyl chloride Colors: White, Black, Green, Royal Blue, Yellow, Pink, Teal Wall thickness: 0.035" | 0.90mm Diameter: 0.255" | 6.48mm |
| Final Outside Diameter (inches) | 0.255 |
PVC-coated Products; PVC-coated Wires and Cables
WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or our information page: California Proposition 65.
