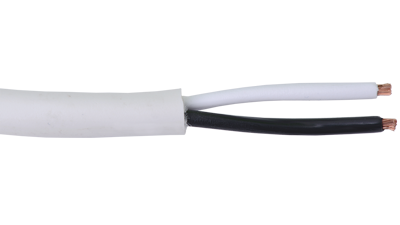

1000' White THX Certified 16 AWG 1 Pair Speaker Cable Reel
16-1P-UC-WHTPricing
Login for Your PriceAvailability
Product Options
| Quantity: | |
| Units: |
You might also consider this alternate:
Add to Cart
Have Tech Questions?
California Proposition 65
Product Overview
Features and Benefits
- 105-strand annealed bare copper conductors
- Cellular polyethylene insulation
- Twisted, unshielded with paper tape binder
- Semi-pressured flame rated PVC jacket
- THX certified and low capacitance
- NEC CL3R, CEC CMG FT4 audio only, RoHS compliant
- 1000 foot spools
Applications
- Speaker level audio, home theater grade
- Best applications below 40 feet
- Class 2 and 3 low voltage power
16-1P-UC-WHT Summary
16-1P-UC-WHT Diagrams
16-1P-UC-WHT is comparable to:
| Manufacturer | Part Number |
|---|---|
| Belden NG | 5200UP |
Alternatives for 16-1P-UC-WHT
| Part Number | Description | |
|---|---|---|
| 16-2C-EX+-WHT |
Download Hi-res Images
Specifications
| Product Line: | 16-1P-UC |
|---|---|
| Description | 2 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. THX™ Certified Speaker Cable for Custom Installation and Design. |
| Conductor | 16 AWG 105-strand annealed bare copper conductors Diameter: 0.059" | 1.50mm |
| Electrical | DC resistance: 4.02 Ω / 1000’ | 13.18 Ω/KM Mutual capacitance: 19.2 pF/FT | 62.98 pF/M Impedance: 89 Ω Inductance: 0.18µH/FT | 0.60µH/M Velocity of Propagation: 66% Voltage rating: 300V Maximum current: 6.25A@25°C |
| Insulation | Polyethylene Wall thickness: 0.015" | 0.38mm Diameter: 0.089" | 2.26mm |
| Regulatory | NEC: CMR 75°C CEC: CMG FT4 60°C THX™ Certified via THX LTD EU RoHS-2 2011/65/EU Compliant |
| Color Code | White printed in black ink Black printed ------ in white ink |
| Packages | Reel: 1000’ | 305M Weight: 45 Lbs/1000’ | 68 Kg/KM |
| Assembly | 2 conductors twisted Lay length: 1.5" | 40mm 8.0 twists per foot | 25.0 twists per meter |
| Installation | Pull Tension: 65 Lbs | 289 N Bend radius: 2.83" | 72mm unloaded Bend radius: 5.7" | 144mm loaded |
| Construct | 100% Paper tape binder Ripcord under jacket |
| Applications | Riser commercial and residential speaker level audio General purpose 70V commercial speaker audio General purpose Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 50 feet |
| Jacket | Pressure extruded polyvinyl chloride Colors: White Wall thickness: 0.045" | 1.14mm Diameter: 0.283" | 7.19mm |
| Final Outside Diameter (inches) | 0.283 |
