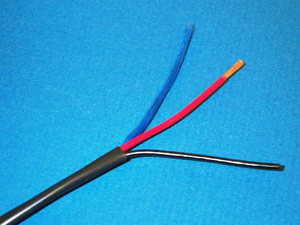

1000' Black Commercial Grade General Purpose 16 AWG 2-Conductor Cable Reel
16-2C-BLKList Product Options
Pricing
Login for Your PriceAvailability
Need More Options?
Dig Deeper...
Dig Deeper...
Product Options
| Packaging: | |
| Color(s): | |
| Length(s): | |
| Unit(s): | |
| Quantity: |
Add to Cart
Have Tech Questions?
California Proposition 65
Product Overview
Features and Benefits
- 19-strand annealed bare copper conductors
- Semi-rigid PVC insulation
- Twisted, unshielded
- Riser rated PVC jacket
- NEC CL3R, CEC CMG, RoHS compliant
Applications
- Speaker level audio distribution
- 70V speaker systems
- DC power, class 2 and class 3 power, system control
16-2C-BLK Summary
16-2C-BLK Diagrams
16-2C-BLK is comparable to:
| Manufacturer | Part Number |
|---|---|
| Extron | 22-151-03 |
| West Penn | 225 |
| Belden | 5200UE |
| Belden NG | 5200UE |
Alternatives for 16-2C-BLK
No equivalent alternates available for 16-2C-BLK
.Download Hi-res Images
Specifications
| Product Line: | 16-2C |
|---|---|
| Description | 2 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | 16 AWG 19-strand annealed bare copper conductors Diameter: 0.056" | 1.42mm |
| Electrical | DC resistance: 4.38 Ω / 1000’ | 14.36 Ω/KM Mutual capacitance: 32.0 pF/FT | 104.96 pF/M Impedance: 58 Ω Inductance: 0.15µH/FT | 0.49µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 6.25A@25°C |
| Insulation | Semi-rigid polyvinyl chloride Wall thickness: 0.010" | 0.25mm Diameter: 0.076" | 1.93mm |
| Regulatory | NEC: CMR 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red |
| Packages | Reel: 1000’ | 305M Weight: 27 Lbs/1000’ | 41 Kg/KM |
| Assembly | 2 conductors twisted Lay length: 3.0" | 80mm 4.0 twists per foot | 12.5 twists per meter |
| Installation | Pull Tension: 42 Lbs | 187 N Bend radius: 1.90" | 49mm unloaded Bend radius: 3.80" | 98mm loaded |
| Construct | Ripcord under jacket |
| Applications | Riser commercial and residential speaker level audio General purpose 70V commercial speaker audio General purpose Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 50 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Gray Wall thickness: 0.020" | 0.51mm Diameter: 0.190" | 4.83mm |
| Final Outside Diameter (inches) | 0.19 |
