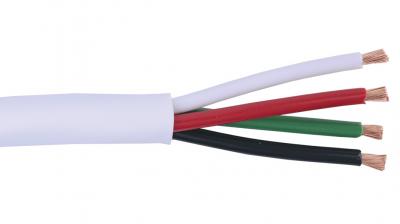

KnockOut 16 AWG 4-Conductor Speaker Cable
16-4C-KO+
Pricing :
Login for Your Price
Or
- 65-strand annealed bare copper conductors
- Semi-rigid PVC insulation
- Twisted, unshielded
- Heavy duty general purpose rated PVC jacket
- NEC CM, CEC CMG FT4, RoHS compliant
- Speaker level audio distribution
- 70V speaker systems
- DC power, class 2 and class 3 power, system control
Specifications
| Product Line: | 16-4C-KO+ |
|---|---|
| Description | 4 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Conductor | 16 AWG 65-strand annealed bare copper conductors Diameter: 0.059" | 1.49mm |
| Electrical | DC resistance: 4.02 Ω / 1000’ | 13.18 Ω/KM Mutual capacitance: 31.0 pF/FT | 101.68 pF/M Impedance: 72 Ω Inductance: 0.16µH/FT | 0.52µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current:5.0A@25°C |
| Insulation | Semi-rigid polyvinyl chloride Wall thickness: 0.016" | 0.41mm Diameter: 0.0906" | 2.3mm |
| Regulatory | NEC: CM 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red, White, Green |
| Packages | Reel: 1000’ | 305M Reel: 500’ | 152M Weight: 61 Lbs/1000’ | 91 Kg/KM |
| Assembly | 4 conductors twisted Lay length: 4.0" | 100mm 3.0 twists per foot | 10.0 twists per meter |
| Installation | Pull Tension: 83 Lbs | 370 N Bend radius: 2.69" | 69mm unloaded Bend radius: 5.38" | 138mm loaded |
| Construct | Ripcord under jacket |
| Applications | General purpose speaker level audio General purpose 70V commercial speaker audio General purpose Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 50 feet |
| Jacket | Flame rated polyvinyl chloride Colors: White, Light green, Gray Wall thickness: 0.025" | 0.635mm Diameter: 0.269" | 6.82mm |
| Final Outside Diameter (inches) | 0.269 |
| Part Number | Description | |
|---|---|---|
| RVSPK164BK | ||
| 16-4C-EX+ | EXTRAFLEX 16 AWG 4-Conductor Heavy Duty Speaker Cable | |
| 16-4C-HT | HomeTrax Economy 16 AWG 4 Conductor Speaker Cable | |
| 16-4C | Commercial Grade General Purpose 16 AWG 4-Conductor Cable |
