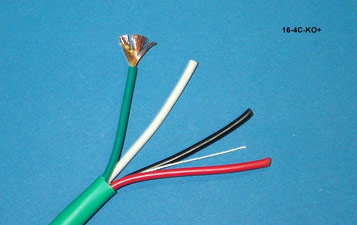

1000' Light-Green KnockOut 16 AWG 4-Conductor Speaker Cable Reel

16-4C-KO+-LGN


List Product Options

Ordering Options

Pricing

Login for Your Price

Availability


Product Options

Packaging:
Color(s):
Length(s):
Quantity:
Units:
You might also consider these alternates:

Add to Cart

Have Tech Questions?
California Proposition 65

Product Overview

Features and Benefits

  • 65-strand annealed bare copper conductors
  • Semi-rigid PVC insulation
  • Twisted, unshielded
  • Heavy duty general purpose rated PVC jacket
  • NEC CM, CEC CMG FT4, RoHS compliant

Applications

  • Speaker level audio distribution
  • 70V speaker systems
  • DC power, class 2 and class 3 power, system control

16-4C-KO+-LGN Summary

16-4C-KO+-LGN Diagrams

16-4C-KO+-LGN is comparable to:

Manufacturer Part Number
Belden NG 5200UP
Belden NG 5202UP
West Penn HA245

Alternatives for 16-4C-KO+-LGN

Part Number Description
16-4C-EX+EXTRAFLEX 16 AWG 4-Conductor Heavy Duty Speaker Cable
16-4C-HTHomeTrax Economy 16 AWG 4 Conductor Speaker Cable
16-4CCommercial Grade General Purpose 16 AWG 4-Conductor Cable

Download Hi-res Images


16-4C-KO+16-4C-KO+ end

Specifications

PDF Spec Sheet

Product Line:   16-4C-KO+
Description 4 conductor 16 AWG stranded, twisted, and unshielded cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Conductor 16 AWG
65-strand annealed bare copper conductors
Diameter: 0.059" | 1.49mm
Electrical DC resistance: 4.02 Ω / 1000’ | 13.18 Ω/KM
Mutual capacitance: 31.0 pF/FT | 101.68 pF/M
Impedance: 72 Ω
Inductance: 0.16µH/FT | 0.52µH/M
Velocity of Propagation: 55%
Voltage rating: 300V
Maximum current:5.0A@25°C
Insulation Semi-rigid polyvinyl chloride
Wall thickness: 0.016" | 0.41mm
Diameter: 0.0906" | 2.3mm
Regulatory NEC: CM 75°C
CEC: CMG FT4 60°C
EU RoHS-2 2011/65/EU Compliant
Color Code Black, Red, White, Green
Packages Reel: 1000’ | 305M
Reel: 500’ | 152M
Weight: 61 Lbs/1000’ | 91 Kg/KM
Assembly 4 conductors twisted
Lay length: 4.0" | 100mm
3.0 twists per foot | 10.0 twists per meter
Installation Pull Tension: 83 Lbs | 370 N
Bend radius: 2.69" | 69mm unloaded
Bend radius: 5.38" | 138mm loaded
Construct Ripcord under jacket
Applications General purpose speaker level audio
General purpose 70V commercial speaker audio
General purpose Class 2 and 3 power
Shield N/A
Performance Speaker level audio to 50 feet
Jacket Flame rated polyvinyl chloride
Colors: White, Light green, Gray
Wall thickness: 0.025" | 0.635mm
Diameter: 0.269" | 6.82mm
Final Outside Diameter (inches) 0.269
