Black RGB CBL 5XRG6 SD CMR BLK Reel
RGB5C-RANDiscontinued Item
California Proposition 65
Product Overview

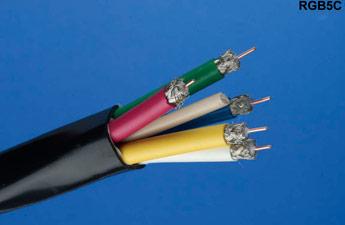

RGB Cable, Serial Digital Broadcast Quality
5 RG6 Dual Shield SMPTE SDI Coaxial Cables
18 AWG Solid Annealed Bare Copper Conductor
Gas-Injected Cellular Polyethylene Dielectric
100% Coverage Aluminum/Poly/Aluminum Foil inner shield
95% Coverage Tinned Copper Braid Shield
Flame rated PVC Coaxial jacket
3.0 GHz Sweep, very low loss, Excellent SRL
Flexible Matte finish TPE Outer Jacket with ripcord
NEC CMR, CEC CMG FT4, RoHS Compliant
Random Spool Lengths
Applicatons:
SMPTE Serial Digital Video, AES3id Digital Audio
All Base Band Video and Unbalanced Analog Audio
RF Modulated Signals, CATV, DBS, MATV
CONNECTOR LIST FOR THIS PRODUCT:
BNC BNC-8
RCA Crimp CRCA-8
RCA Solder ZD03
CONNECTEC COMPRESSION SERIES:
BNC CM-RG6L-BNC
RCA CM-RG6L-RCA
F CM-RG6L-F
Features and Benefits
5 RG6 Dual Shield SMPTE SDI Coaxial Cables
18 AWG Solid Annealed Bare Copper Conductor
Gas-Injected Cellular Polyethylene Dielectric
100% Coverage Aluminum/Poly/Aluminum Foil inner shield
95% Coverage Tinned Copper Braid Shield
Flame rated PVC Coaxial jacket
3.0 GHz Sweep, very low loss, Excellent SRL
Flexible Matte finish TPE Outer Jacket with ripcord
NEC CMR, CEC CMG FT4, RoHS Compliant
Random Spool Lengths
Applicatons:
SMPTE Serial Digital Video, AES3id Digital Audio
All Base Band Video and Unbalanced Analog Audio
RF Modulated Signals, CATV, DBS, MATV
CONNECTOR LIST FOR THIS PRODUCT:
BNC BNC-8
RCA Crimp CRCA-8
RCA Solder ZD03
CONNECTEC COMPRESSION SERIES:
BNC CM-RG6L-BNC
RCA CM-RG6L-RCA
F CM-RG6L-F
RGB5C-RAN Summary
RGB5C-RAN Diagrams
RGB5C-RAN is comparable to:
| Manufacturer | Part Number |
|---|---|
| ManufacturerExtron | Part Number22-100-02 |
| ManufacturerBelden | Part Number7712A |
| ManufacturerGepco | Part NumberVS52001 |
| ManufacturerWest Penn | Part NumberWP6355 |
Alternatives for RGB5C-RAN
No equivalent alternates available for RGB5C-RAN
