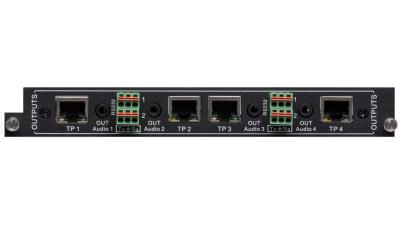

Long Reach Output Card for Card-Based Matrix Switcher - HDBaseT and Audio De-Embedding
FLX-BO4A-XL
Product Overview
Features and Benefits
- Long Reach HDBaseT output card for FLX-88/-1616/-3232
- Maximum extended distance: 150 meters (492 feet)
- Four HDBaseT RJ45 outputs with RS232 embedding
- Stereo analog audio de-embedding on each output
- Can be used with DIGI-HDXL-R to transmit signal to remote displays
- Supports HDBaseT Specifications; HDMI and HDCP compliance
Applications
- Designed for use with FLX-88, FLX-1616, FLX-3232
- Ideal for installations requiring very long HDMI runs and remote control of destination devices
- Transmit signal to remote displays: 1080p up to 492 feet
FLX-BO4A-XL Summary
The FLX-BO4A-XL takes advantage of HDBaseT outputs connect any source device to a remote display, up to 150m away, utilizing shielded Cat 5e or greater cable. The bi-directional RS232 connections for each output allow control signals at the equipment rack to control displays connected to compatible receivers.
The FLX-BO4A-XL also includes the ability to extract stereo audio from the HDMI signal. The stereo analog audio is output to 3.5mm jacks. The FLX-BO4A-XL features advanced EDID handling features that ensure video and audio compatibility, such as full copy and hybrid copy functions.
The FLX-BO4A-XL is only compatible with Intelix XL-series HDBaseT product offerings. An HDBaseT link will not be established with other HDBaseT products.
FLX-BO4A-XL Diagrams
No available cross references for FLX-BO4A-XL
Alternatives for FLX-BO4A-XL
No equivalent alternates available for FLX-BO4A-XL
.FLX-BO4A-XL Firmware
FLX-BO4A-XL Software
FLX-BO4A-XL Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
