Product Overview

Features and Benefits

  • 24 AWG solid bare copper conductors
  • HDPE, high-density polyethylene insulation
  • Color striping on white conductors
  • Varying lay twisted pairs cabled on a common axis
  • 100% foil shield with foil and drain wire facing in
  • Ripcord under the jacket
  • FR-PVC, flame rated polyvinyl chloride jacket
  • Third party (UL, ETL) certified to category 5e performance
  • NEC rated CMR, CEC rated CMR, CMG FT4, RoHS compliant


  • Non-plenum horizontal LAN 10/100/1000BaseT networking
  • Balun infrastructure, voice, voice over IP cabling
  • Video, audio, infraRed, IP control
  • PoE, HDBaseT, analog and digital multimedia

24-4P-L5SH-EN-BLU Summary

24-4P-L5SH-EN-BLU Diagrams

24-4P-L5SH-EN-BLU is comparable to:

Manufacturer Part Number
Belden 1212F
West Penn 4245F

Alternatives for 24-4P-L5SH-EN-BLU

No equivalent alternates available for 24-4P-L5SH-EN-BLU


Download Hi-res Images

24-4P-L5SH-EN (blue).jpg24-4P-L5SH-EN_end.jpg


PDF Spec Sheet

Product Line:   24-4P-L5SH-EN

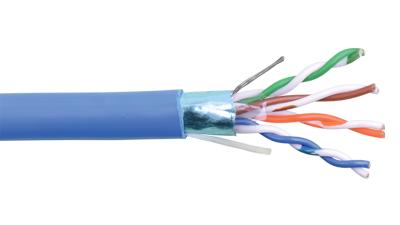

Description 4 pair 24 AWG solid, twisted, and shielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 5e performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Conductor 24 AWG
Solid annealed bare copper conductors
Diameter: 0.021" | 0.53mm
Electrical DC resistance: ≤ 28.6 Ω / 1000’ | 93.81 Ω/KM
DCR Unbalance: ≤ 5%
Capacitance: 17.0 pF/FT | 55.8 pF/M
Impedance: 100 ± 15 Ω
Propagation Delay (Skew): 45ns/100m MAX
Velocity of Propagation: 68%
Voltage rating: 300V
Pair to ground capacitance Unbalance: ≤ 330 pF/100M
Maximum current: 1.4A@25°C
Insulation High density polyethylene
Wall thickness: 0.0075" | 0.19mm
Diameter: 0.036" | 0.91mm
Regulatory ANSI/TIA-568-C Category 5e
EU RoHS-2 2011/65/EU Compliant
Color Code Pair 1: Orange, White/orange stripe
Pair 2: Blue, White/blue stripe
Pair 3: Green, White/green stripe
Pair 4: Brown, White/brown stripe
Packages Reel: 1000’ | 305M
Weight: Lbs/1000’ | Kg/KM
Assembly Pairs twisted in varying lay lengths with co-extruded like striped conductor
4 twisted pairs cabled on a common axis
Installation Pull Tension: 25 Lbs | 111 N
Bend radius: 2.50" | 64mm unloaded
Bend radius: 5.00" | 128mm loaded
Construct 100% Polyester tape binder
Ripcord under jacket
Applications Riser LAN systems 10/100/1000BaseT
Riser Phone, Voice, Video over IP and security video
BALUN support and media infrastructure
Infrared, audio
Shield 100% aluminum/polyester tape foil in
26 AWG 7-strand tinned copper drain
Performance LAN: 300 feet
Passive Baluns up to 2500 feet
Jacket Flame rated polyvinyl chloride
Colors: Black, Gray, Blue, Green, Violet, Red, White
Wall thickness: 0.022" | 0.56mm
Diameter: 0.250" | 6.35mm
Final Outside Diameter (inches) 0.25
