24-4P-P-L6ASH-RED - Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable

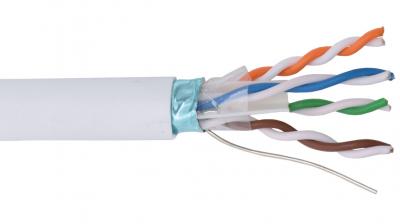

1000' Red Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable Reel

24-4P-P-L6ASH-RED


List Product Options

Ordering Options

Pricing

Login for Your Price

Availability


Product Options

Packaging:
Color(s):
Length(s):
Quantity:
Units:
Add to Cart

Have Tech Questions?
California Proposition 65

Product Overview

Features and Benefits

  • 23 AWG solid bare copper conductors
  • FEP, fluorinated ethylene propylene (Teflon(TM))
  • Varying lay twisted pairs cabled on a common axis
  • 100% foil shield with foil and drain facing in
  • Ripcord under the jacket
  • PL-PVC, plenum rated polyvinyl chloride alloy jacket
  • Third party (UL, ETL) certified to category 6A performance NEC rated CMP, CEC rated CMP, CMG FT6, RoHS compliant

Applications

  • Plenum horizontal LAN 10/100/1000/10GBaseT networking
  • Balun infrastructure, voice, voice over IP cabling
  • Video, audio, infraRed, IP control, PoE, HDBaseT
  • Analog and digital multimedia extension and routing

24-4P-P-L6ASH-RED Summary

24-4P-P-L6ASH-RED Diagrams

24-4P-P-L6ASH-RED is comparable to:

Manufacturer Part Number
Belden 10GX63F
West Penn 254246AF

Alternatives for 24-4P-P-L6ASH-RED

No equivalent alternates available for 24-4P-P-L6ASH-RED

.

Specifications

PDF Spec Sheet

Product Line:   24-4P-P-L6ASH
Description 4 pair 23 AWG solid, twisted, and shielded cable
NEC type CMP and CEC type CMP FT6. Third party verified to ANSI/TIA-568C Category 6A performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Conductor 23 AWG
Solid annealed bare copper conductors
Diameter: 0.0226" | 0.574mm
Electrical DC resistance: ≤ 28.6 Ω / 1000’ | 93.8 Ω/KM
DCR Unbalance: ≤ 3.0%
Capacitance: 17.0 pF/FT | 56.0 pF/M
Impedance: 100 ± 15 Ω
Propagation Delay (Skew): 35ns/100m MAX
Velocity of Propagation: 78%
Voltage rating: 300V
Pair to ground capacitance Unbalance: ≤ 330 pF/100M
Maximum current: 1.4A@25°C
Insulation Fluorinated ethylene propylene
Wall thickness: 0.012" | 0.29mm
Diameter: 0.045" | 1.14mm
Regulatory ANSI/TIA-568-C Category 6A
NEC: CMP 75°C
CEC: CMP FT6 60°C
EU RoHS-2 2011/65/EU Compliant
Color Code Pair 1: Orange, White/Orange
Pair 2: Blue, White/Blue
Pair 3: Green, White/Green
Pair 3: Green, White/Green
Note: Striping will be light due to FEP compound
Packages Reel: 1000’ | 305M
Weight: 45 Lbs/1000’ | 67 Kg/KM
Assembly Pairs twisted in varying lay lengths
Each pair in a fluoropolymer separator interstice
Installation Pull Tension: 32 Lbs | 142 N
Bend radius: 2.90" | 74mm unloaded
Bend radius: 5.80" | 148mm loaded
Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
Construct 100% polyester tape binder
Applications Plenum LAN systems 10/100/1000BaseT and 10GBaseT
Plenum Phone, Voice, Video over IP and security video
BALUN support and media infrastructure
Infrared, audio
Shield 100% aluminum/poly tape with foil in
24 AWG solid tinned copper drain wire
Performance LAN: 300 feet
Passive Baluns up to 2500 feet
Jacket Plenum rated polyvinyl chloride
Colors: Blue, White
Wall thickness: 0.023" | 0.58mm
Diameter: 0.290" | 7.37mm
Final Outside Diameter (inches) 0.29
