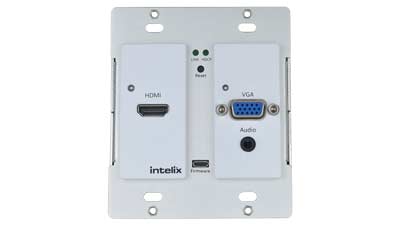

AS-1H1V-WP-W - HDMI/VGA Auto-Switching Wallplate with VGA Scaling & HDBaseT Output

Product Overview

Features and Benefits

  • HDMI (including audio) and VGA/3.5mm Stereo input
  • HDBaseT output - 70m Max Distance
  • VGA scaling up to 1920x1200
  • Automatically switches input to active video
  • RS232, Auto, and Dry Contact Closure for control of device
  • PoH (Power over HDBaseT) or 12V DC local power
  • Display Control Software to control TV or projector with RS232 commands - automatically turns display on/off
  • Customizable power management system when not in use


  • Uses any shielded solid core Cat5e or greater twisted pair cabling
  • Extension of HDMI and VGA with stereo audio to one HDMI
  • Ideal for boardroom, education, and hospitality

AS-1H1V-WP-W Summary

The Intelix AS-1H1V-WP is a two-gang, Decora-style wallplate designed to be the primary PC interface for classrooms, boardrooms, and conference centers. It features VGA + Audio to HDMI conversion with VGA scaling up to 1920x1200 and an HDMI input.

The AS-1H1V-WP utilizes HDBaseT technology to extend the digital output up to 70 meters away using solid core shielded Category 5e or greater cable. This transmitter device is compatible with several Intelix HDBaseT receivers, but is designed to work primarily with the DIGI-HD60C-R. The unit features multiple EDID modes to eliminate user confusion, and incompatible video formats.

The AS-1H1V can be powered from the rear panel or by Power over HDBaseT (PoH), including midspan injectors that support Power over Ethernet (PoE) Alternative A or Alternative B. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. The AS-1H1V-WP also features a customizable power management system, which will put the unit into a low power state after no video for 30 minutes or being inactive for 3 hours by default. When using the local power input, 12V DC is available for other devices on the power output connections on the rear of the device.

The AS-1H1V-WP will detect which input has an active video input, and switch to that input – if both inputs are active, the “last in” will be selected. There are additional contact closure inputs provided on the rear of the unit to allow third party control. RS232 control of the AS-1H1V-WP can be accomplished by connecting to the RS232 port on a compatible receiver, such as a DIGI-HD60C-R, or through a direct connection on the RS232 input of the device.

The AS-1H1V-WP can be programmed to control the connected display. The display manufacturer’s RS232 commands can be entered into the AS-1H1V-WP with the use of Intelix Display Control software. This allows display power and input to be automatically controlled based on video activity, eliminating the need for a third party control system in many installations.

AS-1H1V-WP-W Diagrams

No available cross references for AS-1H1V-WP-W

Alternates that meet or exceed AS-1H1V-WP-W specifications

No equivalent alternates available for AS-1H1V-WP-W

HDMI/VGA Auto-Switching Wallplate with VGA Scaling & HDBaseT OutputHDMI/VGA Auto-Switching Wallplate with VGA Scaling & HDBaseT OutputHDMI/VGA Auto-Switching Wallplate with VGA Scaling & HDBaseT OutputHDMI/VGA Auto-Switching Wallplate with VGA Scaling & HDBaseT OutputHDMI/VGA Auto-Switching Wallplate with VGA Scaling & HDBaseT Output

Supporting Documents

AS-1H1V-WP Installation Manual


PDF Spec Sheet

Product Line:   AS-1H1V-WP
Input/Output Connections
HDMI InputOne (1) HDMI Type A Receptacle
VGA InputOne (1) PC Video HD-15-F Receptacle
Analog AudioOne (1) 3.5 mm TRS Receptacle
HDBaseT PortOne (1) 8P8C port (Shielded RJ45)
PowerOne (1) 2-pin Removable Terminal Block Connector
RS232 Port with 12V DC OutputOne (1) 4-pin Removable Terminal Block Connector
Contact ClosuresOne (1) 4-pin Removable Terminal Block Connector
Firmware PortOne (1) USB Type B Micro Receptacle
Supported Audio, Video and Control
Video ResolutionsSMPTE: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, UHD/30 (HDMI only)
VESA: Resolutions up to 1920x1200
Color Depth: 24, 30, 36, 48bit
VGA Scaling Resolutions (60 Hz)1024x768, 1400x1050, 1600x1200, 1280x800, 1360x768, 1920x1200, 720p, 1080p
Maximum Video Compatibility at 70 mDeep Color 36/30/24 Bit at 1080p
Maximum Video Compatibility at 40 mDeep Color 48 Bit at 1080p, 3D (HDMI Input), UHD/30
Video ComplianceHDMI 1.4 and HDCP 1.4
Embedded AudioUp to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
Analog AudioAnalog stereo line-level (Converted to 2ch 24bit PCM 48kHz)
ARC (Audio Return Channel)No
HEC (HDMI Ethernet Channel)No
CEC (Consumer Electronics Control)Yes (HDMI Pass-through Only)
Baud Rate (Wall plate control)2400, 4800, 9600 (default), 19200, 38400, 57600, 115200
Supported Baud Rates (Display Control)2400, 4800, 9600, 19200, 38400, 57600, 115200
HDBaseT Signal Characteristics
Maximum Distance70 m (229 ft)
Cable RequirementsContinuous solid core Category 5e or greater with TIA/EIA-568B crimp pattern (no couplers in-line)
Bandwidth10.2 Gbps
HDBaseT ChipsetVS010TX
Chassis and Environmental
ConstructionAlumininum Housing
Dimensions (H x W x D)104 mm x 89 mm x 51 mm (4.09 in x 3.50 in x 2.01 in)
Shipping Weight0.68 kg (11.5 lbs.)
Operating Temperature0° to +40° C (+32° to +104° F)
Operating Humidity20% to 90%, Non-condensing
Storage Temperature-10° to +60° C (+14° to +140° F)
Storage Humidity20% to 90%, Non-condensing
Power and Regulatory
Power Supply12V DC 2A or 48V DC PoH (Power over HDBaseT)
Power Output Port12V DC, 500 mA
Power over Ethernet (PoE) Compatibility802.3af Alternative A and Alternative B
Power Consumption10 watts
Default Automatic Standby Mode30 minutes no signal
ESD Protection16kV
RegulatoryCE, RoHS
Warranty2 years
Diagnostic IndicatorsHDCP, Link, VGA, and HDMI
Reset SwitchMicroswitch
Available ModelsAS-1H1V-WP-W (White Painted Insert), AS-1H1V-WP-B (Black Painted Insert)
Included AccessoriesInstallation Guide, Power Supply, Two (2) 4-pin Removable Screw Terminals, RS232 cable (3-pin to DE9), 2-pin Removable Screw Terminal, USB Programming Cable
HDBaseT Receiver (A/V, PoE, Control) CompatibilityDIGI-HD60C-R, DIGI-HDX-R, FLX-64, DIGI-BSR-4K
HDBaseT Receiver (A/V, Control) CompatibilityFLX-BI4
HDBaseT Receiver (A/V and PoE) CompatibilityDIGI-HD60-R
Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches.
