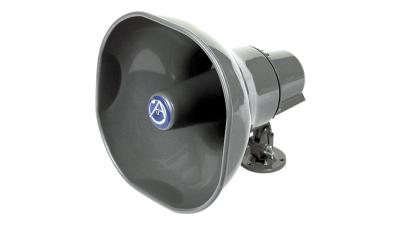

AP-30T - 30 Watt 70V General Purpose Paging Horn

30 Watt 70V General Purpose Paging Horn

AP-30T


Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Units:
Add to Cart

Have Tech Questions?
California Proposition 65
AP-30T - 30 Watt 70V General Purpose Paging Horn

Product Overview

Features and Benefits

  • 70V paging horn
  • 25V/70.7V/100V-30W Transformer
  • Power Taps-2, 3.8, 15, 30 @ 70.7V
  • Sensitivity: 108db
  • Dispersion: 60 degrees
  • Omni-purpose bracket for positioning flexibility
  • Environment resistant for outdoor use

Applications

  • Commercial audio systems and solutions
  • Use for indoor outdoor public address and paging

AP-30T Summary

The Model AP-30T is a double re-entrant loudspeakers which deliver 30-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

The AP-30T operates within a nominal frequency response range of 300-12,000 Hz and offers a sensitivity of 121dB at rated power to provide clear voice and signal communication.
