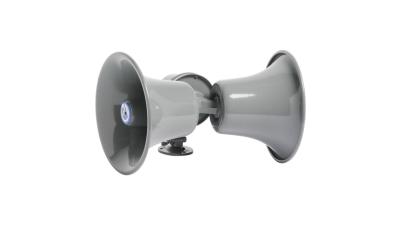

APT-34AT - 30 Watt 70V General Purpose Twin Paging Horn

Product Overview

Features and Benefits

  • Dual direction 70V twin horn loudspeaker
  • 25V/70.7V/100V-30W Transformer
  • Power Taps-2, 3.8, 7.5, 15, 30W @ 70.7V
  • Sensitivity: 101db
  • Provides 100 degrees of sound dispersion in each direction
  • Omni-purpose bracket for positioning flexibility
  • Weather Resistant

Applications

  • Commercial audio systems and solutions
  • Use for indoor outdoor public address and paging

APT-34AT Summary

Model APT-34AT Surface-mounting loudspeaker with bi-directional sound dispersion provides concentrated coverage in corridors, stairwells and walkways in commercial, institutional and industrial applications. Twin horn assembly delivers 30 watts of power with a single compression driver (included) and provides 100° sound dispersion in each direction.

Unit includes the Omni-Purpose® bracket and provisions for surface/strap mounting.

APT-34AT Diagrams

No available cross references for APT-34AT

Alternatives for APT-34AT

No equivalent alternates available for APT-34AT

.
APT-34AT_Datasheet

Specifications

PDF Spec Sheet

APT-34AT Firmware

APT-34AT Software

APT-34AT Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
