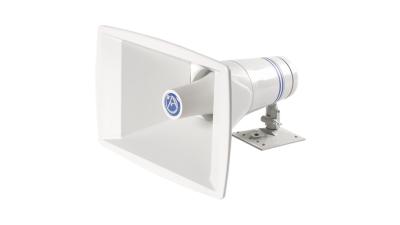

APX40TN - 40 Watt 70V General Purpose Horn w/ Rotating Bell

40 Watt 70V General Purpose Horn w/ Rotating Bell

APX40TN


Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Units:
Add to Cart

Have Tech Questions?
California Proposition 65
APX40TN - 40 Watt 70V General Purpose Horn w/ Rotating Bell

Product Overview

Features and Benefits

  • Constant-directivity 70V paging horn with rotating bell
  • 25V/70.7V/100V-40W Transformer
  • Power Taps-2.5, 10, 20, 30, 40 @ 70.7V
  • Sensitivity: 107db
  • Coverage of 60H x 40V across a wide frequency range
  • Omni-purpose bracket for positioning flexibility
  • Rotates in 15 degree Increments for Exact Positioning
  • Mounting bracket may be mounted to standard E.O. boxes
  • Weather Proof

Applications

  • Commercial audio systems and solutions
  • Use for indoor outdoor public address and paging

APX40TN Summary

Model APX40TN is a conservatively-rated, 40 watt constant-directivity paging loudspeaker for use in public address or paging applications. It combines constant-directivity with superior engineering design, achieving extraordinary performance with quick and easy installation.

This constant-directivity loudspeaker offer exact positioning flexibility with a simple twist of the wrist. The APX loudspeaker is well-suited for indoor applications including commercial, light industrial, and large retail/distribution applications where clear and pleasant indoor paging/communications and security are required. The speaker is also appropriate for installation in outdoor retail, commercial, recreational, and public use areas where dependable weatherproof performance is needed for communications and security.

APX40TN Diagrams

No available cross references for APX40TN

Alternatives for APX40TN

No equivalent alternates available for APX40TN

.
APX40TN_Datasheet

Specifications

PDF Spec Sheet

APX40TN Firmware

APX40TN Software

APX40TN Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
