8", 5 Watt Dual Cone Loudspeaker
C10AT70
Product Overview
Features and Benefits
- General purpose loudspeaker
- Mounts a wide selection of Atlas Sound baffles
- Speaker type: 8" Dual Cone
- Transformer type: 70.7V- 5 Watt
- Power Taps-.5, 1, 2, & 5
- Sensitivity: 94db average
- Frequency Response 100 Hz - 10 kHz, -/+ 1.5dB
- Dispersion:105 degrees
- Mounts a wide selection of Atlas Sound baffles
Applications
- Commercial audio systems and solutions
- Use for background music (BGM) and paging systems
C10AT70 Summary

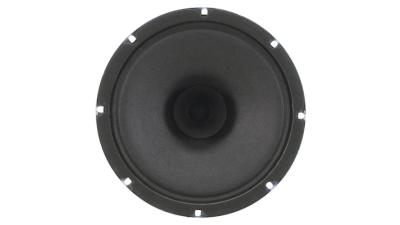

Model C10AT70 is a dual cone, 25-watt 8" (205mm) loudspeaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 70V 5W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.
C10AT70 Diagrams
