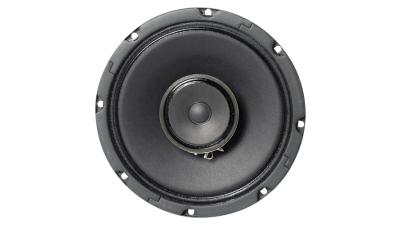

8", 8 Watt Industrial Coaxial Loudspeaker
C803AT87
Product Overview
Features and Benefits
- High quality, coaxial general purpose loudspeaker
- Speaker Type; 8", coaxial
- Transformer type: 70.7V - 8 Watt
- Power Taps-1, 2, 4, & 8
- Sensitivity: 95db average
- Frequency Response 50 Hz - 15 kHz, -/+1.0dB
- Dispersion:120 degrees
- UL Certified, UL1480 and UL2043
- Mounts a wide selection of Atlas Sound baffles
Applications
- Commercial audio systems and solutions
- Use for background music (BGM) and paging systems
C803AT87 Summary
Model C803AT87, A high-quality 16-watt loud speaker with a factory-installed 70.7V 8W linematching transformer
Model C803AT87 utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 70 Hz- 15.5 kHz, ±5dB frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.
C803AT87 Diagrams
No available cross references for C803AT87
Alternatives for C803AT87
No equivalent alternates available for C803AT87
.C803AT87 Firmware
C803AT87 Software
C803AT87 Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
