CJ-46 Summary

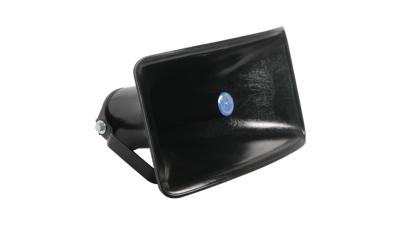

The all-purpose Model CJ-46 wide-angle sound projector screw mounts to Atlas Sound PD and SD Series compression drivers to provide maximum audio penetration through adverse ambient sound levels and coverage over long distances. For versatile mounting applications, Model CJ-46 features a heavy-duty steel mounting bracket with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters. To meet application requirements, the prime sound dispersion axis may be changed from horizontal to vertical via a 90° bell rotation and four 1/4" screws.

Model CJ-46 is manufactured of non-resonant fiberglass with a spun aluminum re-entrant section.

CJ-46 Diagrams

No available cross references for CJ-46

Alternatives for CJ-46

No equivalent alternates available for CJ-46

CJ-46 Firmware

CJ-46 Software

CJ-46 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
