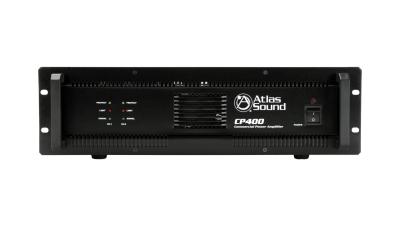

400W High-Performance, Dual-Channel Commercial Audio Amplifier
CP400
Product Overview
Features and Benefits
- 200 Watts x 2 Dual Channel 70V Power Amplifier
- 25V, 70.7V, 100V, and direct coupled outputs
- 2 Balanced inputs on barrier strip and XLR connectors
- Loop through feature on male XLRs, one per channel input
- Stereo, bridge, or parallel operating modes
Applications
- Commercial audio systems and solutions
- Use for background music (BGM) and paging systems
CP400 Summary
A professional grade audio power amplifier specifically designed for demanding contractor applications, the CP400 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz via transformer output) Now you can have the peace of mind that systems specified with the CP400 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.
CP400 Diagrams
No available cross references for CP400
Alternatives for CP400
No equivalent alternates available for CP400
.CP400 Firmware
CP400 Software
CP400 Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
