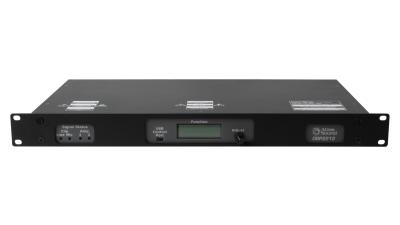

DSP2212 - 2 Channel Sound Masking Processor and Amplifier - Network Enabled

2 Channel Sound Masking Processor and Amplifier - Network Enabled

DSP2212


Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Units:
Add to Cart

Have Tech Questions?
California Proposition 65

Product Overview

Features and Benefits

  • Digital Sound Masking Processor / Amplifier - Network Enabled
  • Two (2) Channels of Random Pink Noise Generator
  • Two (2) Audio Outputs of 25 Watts RMS
  • Multiple Audio Source Inputs for Background Music / Paging
  • AVB For Time Aligned Networking of Multiple Units
  • Intuitive ‘simple to use' Graphic User Interface (GUI)

Applications

  • Commercial audio systems and solutions
  • Use for sound masking applications / speech privacy

DSP2212 Summary

The Atlas Sound DSP2210/DSP2212 digital processor "Privacy" system is a self contained, compact multi-zone digital DSP-GUI controlled processor and digital amplifier capable of simultaneous distribution of masking, paging, and background music signals for use in Industrial, Institutional, Commercial and Government facilities.

The Atlas Sound DSP2210/DSP2212 is capable of automatic mixing, set up and administration of all inputs/outputs per zone (channel). This is accomplished via an intuitive ‘simple to use' Graphic User Interface (GUI) managed via a local laptop or desktop computer that is running Microsoft® Windows®. It provides up to x2 channels of independent on-board digital Class-D amplifiers rated at 25W RMS at 70V. It has a pink noise generator which is random and non-repeating up to (215) hours with EQ adjustments programmable on a per zone basis. The DSP's provide dynamic control and management based on IEEE802.1 AVB standards (Audio-Video Bridging) with independent 1⁄3 Octave (28) band EQ *(Filter type is Butterworth @ 19dB and Linkwitz-Riley at 24dB) and Parametric EQ 8-band for calibration of all PA and masking signals on a per zone basis. Paging (PA) levels are adjustable in 0.5dB increments per zone on Line Level (Music) and Microphone paging inputs. The system has the ability to expand up to (32) systems (64 zones) with primary and secondary assignment in a zone paging dialing plan. It also provides the ability to set up "All Zone" and "Group zone" pages through the GUI.

DSP2212 Diagrams

No available cross references for DSP2212

Alternatives for DSP2212

No equivalent alternates available for DSP2212

.

Specifications

PDF Spec Sheet

DSP2212 Firmware

DSP2212 Software

DSP2212 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
