FA136T87 - 6

6", 8 Watt Coaxial Loudspeaker

FA136T87


Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Units:
Add to Cart

Have Tech Questions?
California Proposition 65

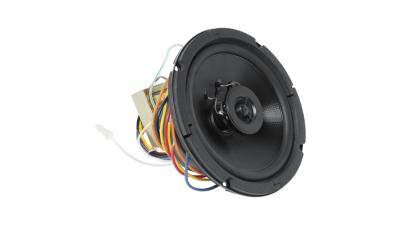

FA136T87 - 6", 8 Watt Coaxial Loudspeaker

Product Overview

Features and Benefits

  • Strategy Series 6" full range loudspeaker
  • Provides excellent low frequency reproduction
  • Speaker type: 6" coaxial
  • Transformer type: 70V - 8 Watt
  • Power Taps: 1, 2, 4, 8 Watts
  • Sensitivity: 88db average
  • Frequency Response 80Hz- 20kHz (+5dB)
  • Dispersion:130 degrees
  • UL 1480 Listed

Applications

  • Commercial audio systems and solutions
  • Use for background music (BGM) and paging systems

FA136T87 Summary

Model FA136T87 (U.S. Patent #5206464) is a high-fidelity, coaxial, 6" loudspeaker that delivers 50-watts with full frequency response and wide dispersion.

UL listed assemblies are manufactured with high quality materials including reinforced, polypropylene woofer and synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance.

Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.

FA136T87 Diagrams

No available cross references for FA136T87

Alternatives for FA136T87

No equivalent alternates available for FA136T87

.

Specifications

PDF Spec Sheet

FA136T87 Firmware

FA136T87 Software

FA136T87 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
